30ft Storage Container with End Roll-Up Door

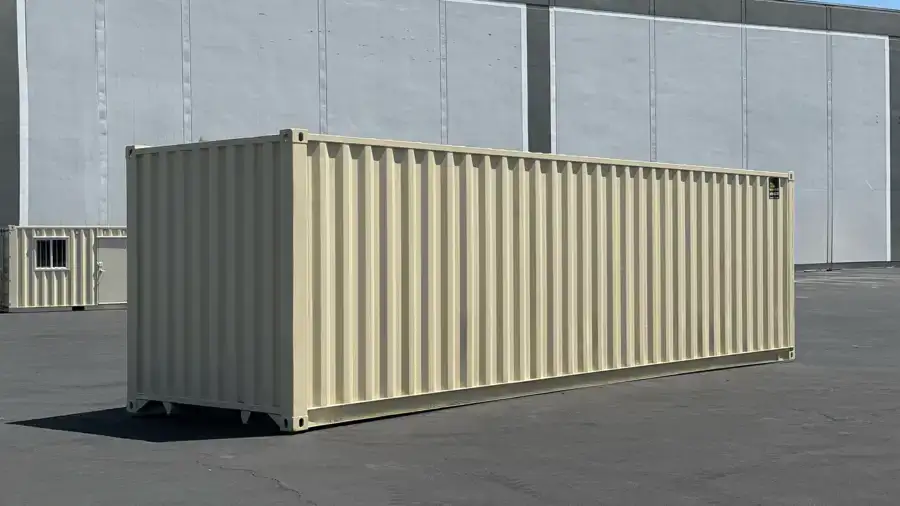

The 30ft storage container features an end-mounted roll-up door for applications requiring frequent access to stored materials. This container provides secure storage for equipment, inventory, and supplies at commercial sites, construction locations, and industrial facilities where space-efficient entry is required.

Key Features

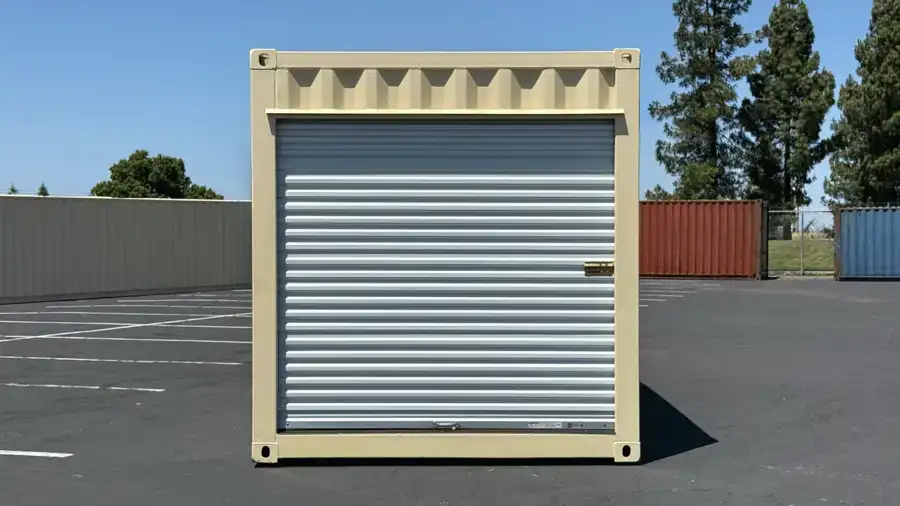

• End roll-up door for convenient access without opening full cargo doors

• Corten steel construction providing structural integrity and weather resistance

• Marine-grade plywood flooring over steel cross-members

• Lock hasps for security applications

• Forklift pockets for ease of handling and positioning

• Corner castings for lifting and stacking compatibility

Detailed Description

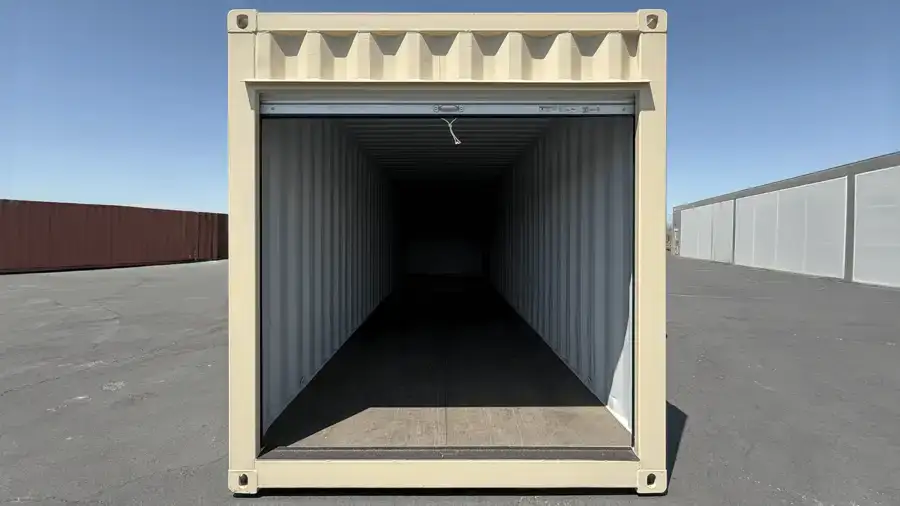

The 30ft storage container with an end roll-up door is designed for applications requiring regular access to stored items. Unlike traditional cargo doors that swing outward, the roll-up door operates vertically, reducing the space required for entry and allowing operation in confined areas.

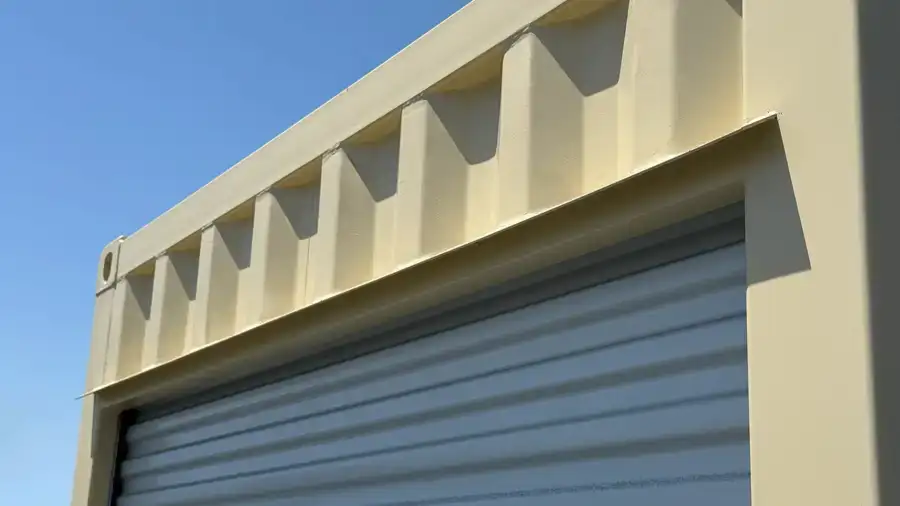

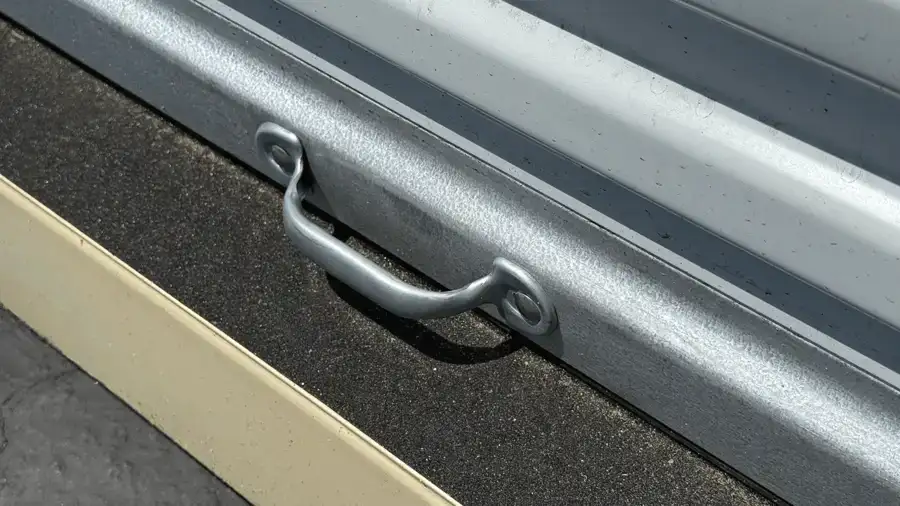

Constructed from Corten steel, the container body resists corrosion and provides structural strength suitable for outdoor placement. The roll-up door mechanism consists of interlocking steel slats that coil into a housing above the door opening when raised. This design maintains weather resistance when closed and allows the door to open without extending into the surrounding area.

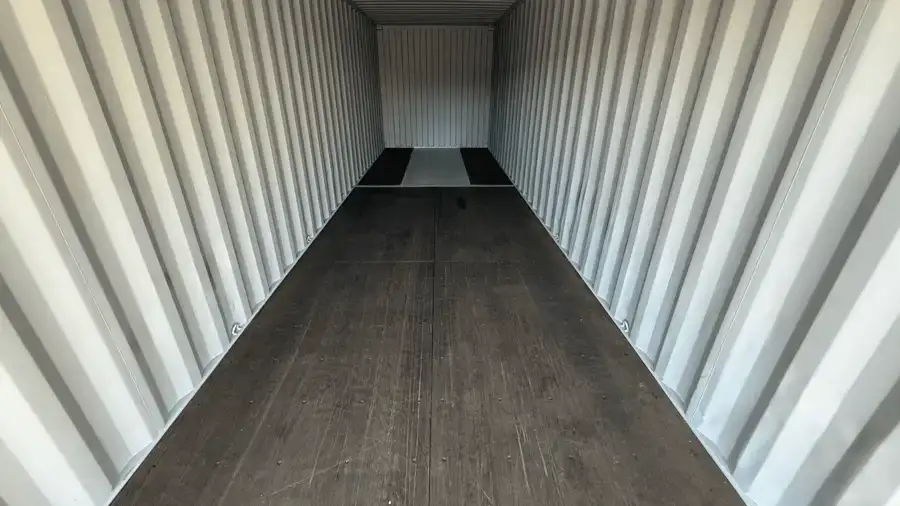

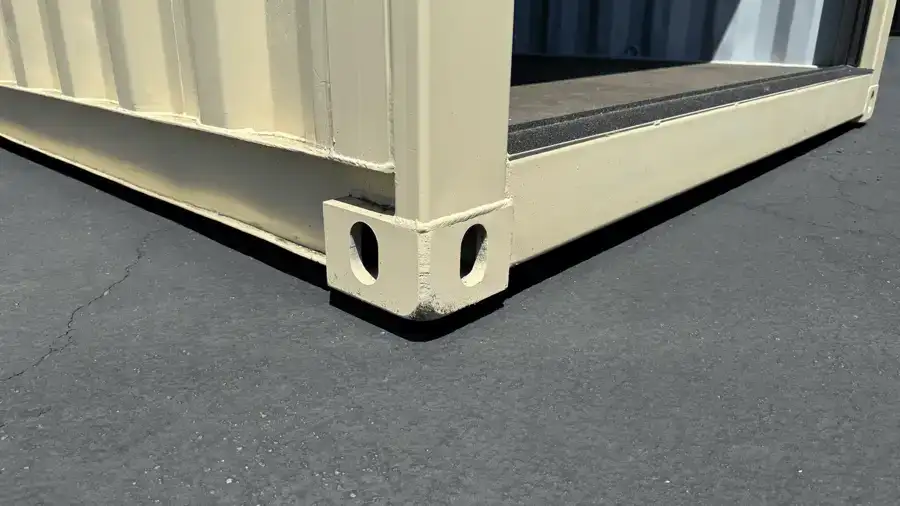

The floor system utilizes marine-grade plywood panels secured to steel cross-members, providing load-bearing capacity suitable for palletized goods, machinery, and equipment. The container includes corner castings at all eight corners for lifting and stacking compatibility with standard handling equipment.

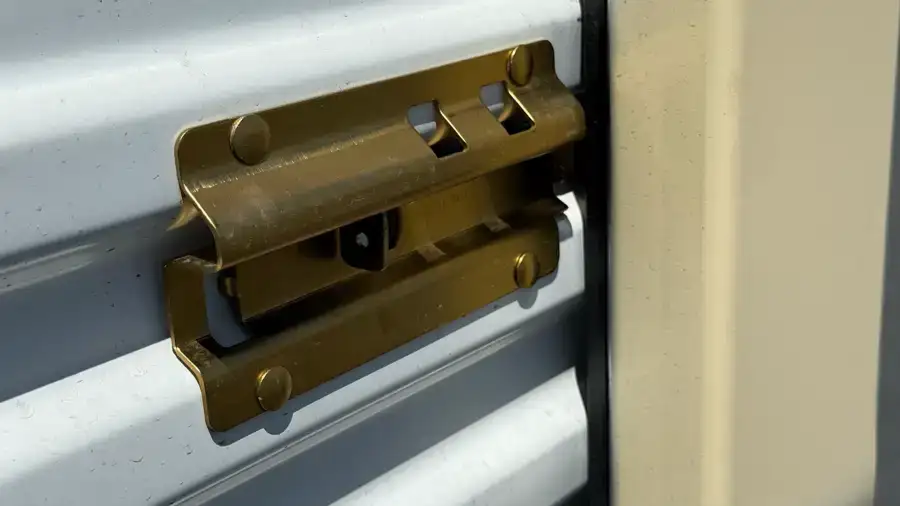

Forklift pockets are positioned along the container base, allowing repositioning with standard forklift equipment. The locking system includes hasps compatible with padlocks or security seals.

Technical Specifications

• External Length: 30 ft (9.14 m)

• External Width: 8 ft (2.44 m)

• External Height: 8 ft 6 in (2.59 m)

• Internal Length: 29 ft 4 in (8.94 m)

• Internal Width: 7 ft 8 in (2.34 m)

• Internal Height: 7 ft 10 in (2.38 m)

• Door Type: Roll-up, end-mounted

• Floor Material: Marine-grade plywood

• Frame Material: Corten steel

• Locking System: Lock hasps

• Approx. Interior Volume: 1,800 ft³ (51 m³)

• Floor Load Capacity: 16,000 lbs (7,260 kg)

• Forklift Pockets: Included, 4 positions

• Corner Castings: Standard, 8 positions

• Certification: CSC

Intended Use

This container is suited for the following applications:

• Equipment and tool storage at construction sites

• Material storage for commercial and industrial operations

• Inventory storage for retail and distribution facilities

• Secure storage for generators, machinery, and palletized goods

• Multi-unit storage facilities requiring individual access

The roll-up door configuration is particularly suited for locations where standard swing doors may be impractical due to space constraints or where frequent access is required throughout the day.

Package Includes

• 30ft storage container with end roll-up door

• Marine-grade plywood floor

• Corner castings (8 total)

• Lock hasps on roll-up door

• Forklift pockets (4 positions)

• CSC certification plate
