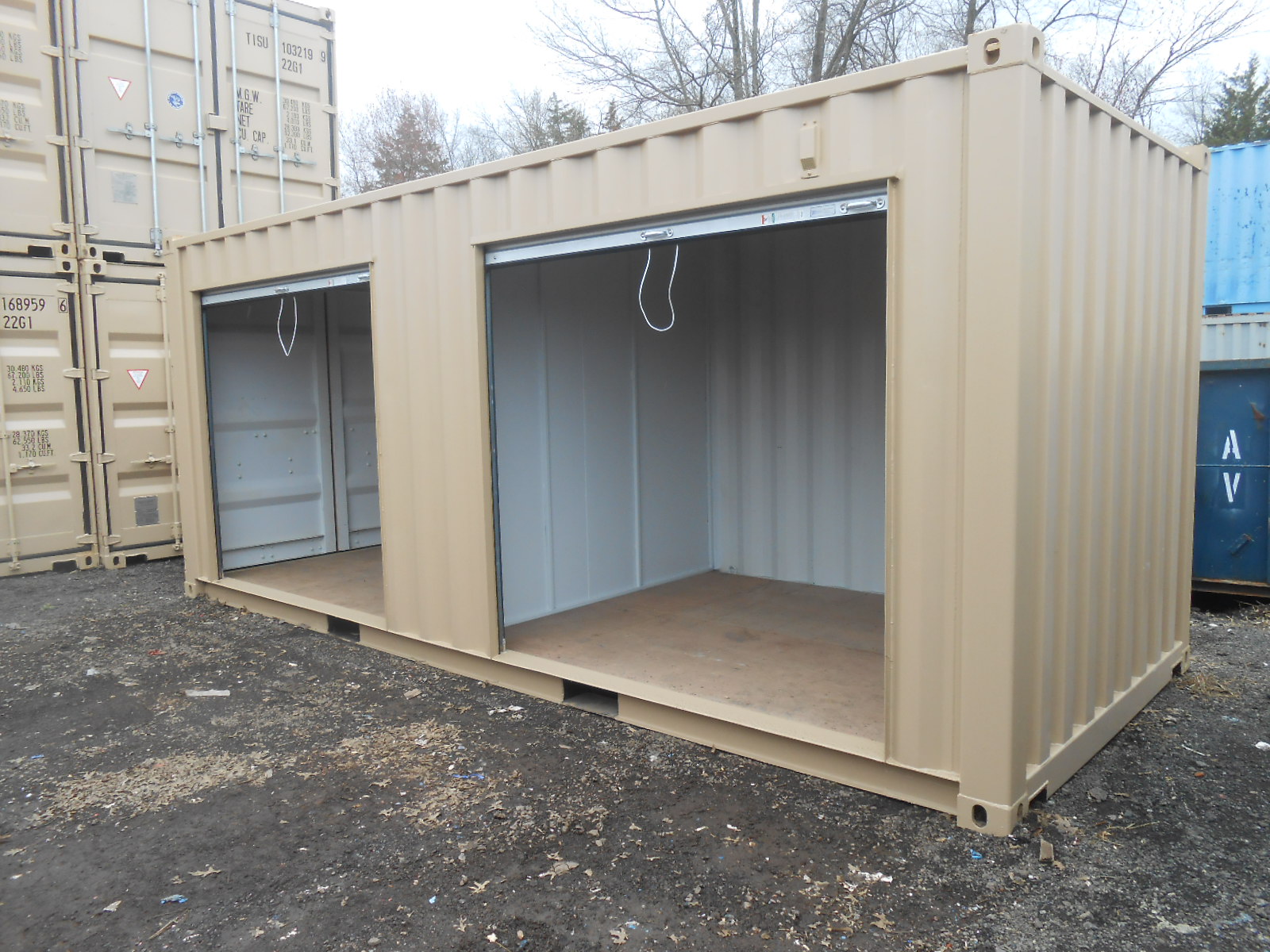

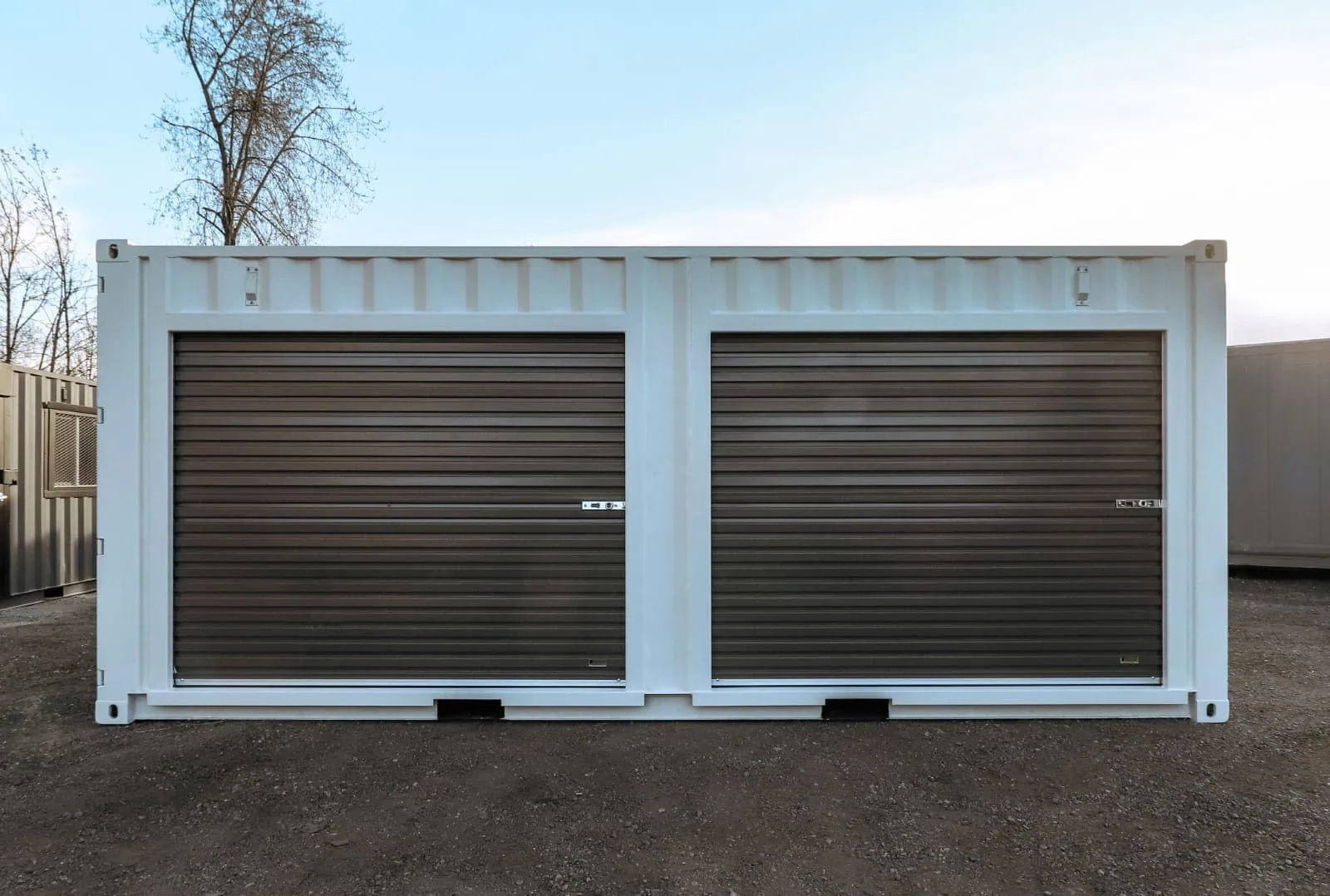

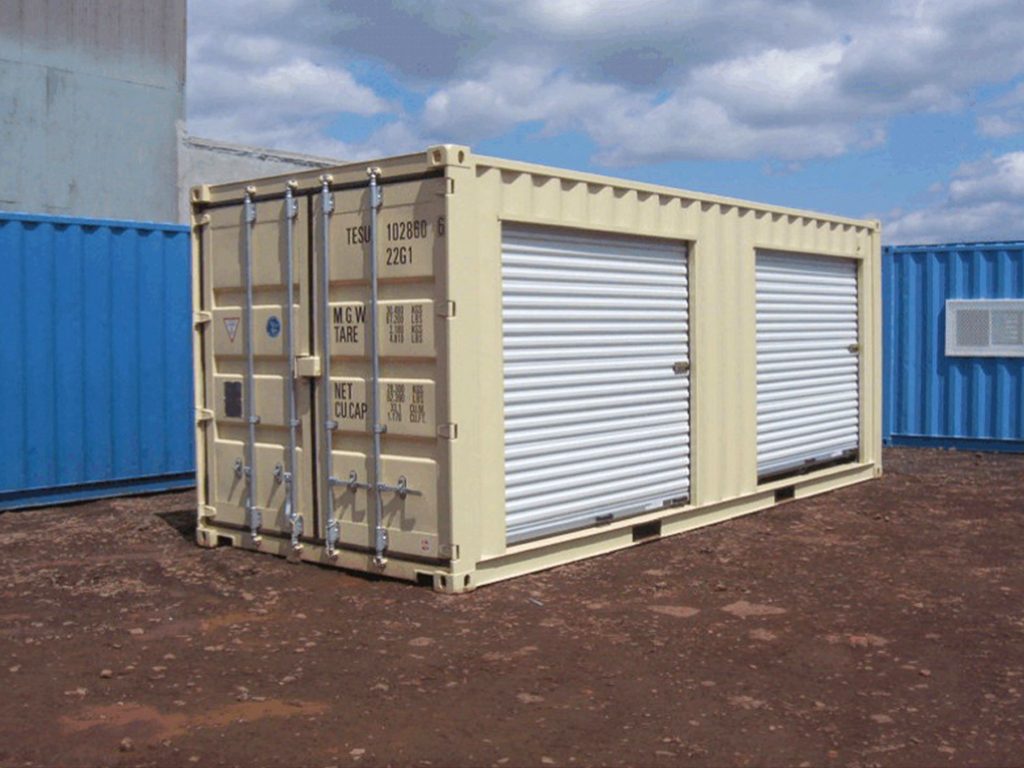

20ft High Cube Container with 2 Roll-Up Side Doors

The 20ft high cube container with two roll-up side doors is a modified storage unit providing flexible access points along the side of the container. This configuration is designed for operations requiring efficient loading and unloading from multiple positions while maintaining the additional interior height of a high cube unit.

Key Features

• Two roll-up side doors providing access along the container side

• High cube configuration offering additional interior height compared to standard containers

• Corten steel construction for structural durability and outdoor use.

• Marine-grade plywood flooring over steel cross-members

• Locking hasps on each roll-up door for security

• Standard cargo doors at one end providing additional access

• Forklift pockets for ease of handling and positioning

• Eight standard corner castings for handling and positioning.

Detailed Description

The 20ft high cube container with two roll-up side doors is constructed from Corten steel, a weathering steel formulation that develops a protective oxide layer when exposed to atmospheric conditions. This material provides structural integrity and resistance to corrosion, making the container suitable for extended outdoor placement .

The high cube configuration provides approximately 8 ft 10 in of interior height, one foot taller than standard shipping containers. This additional vertical space accommodates taller items, supports racking systems, and provides increased air circulation for stored materials .

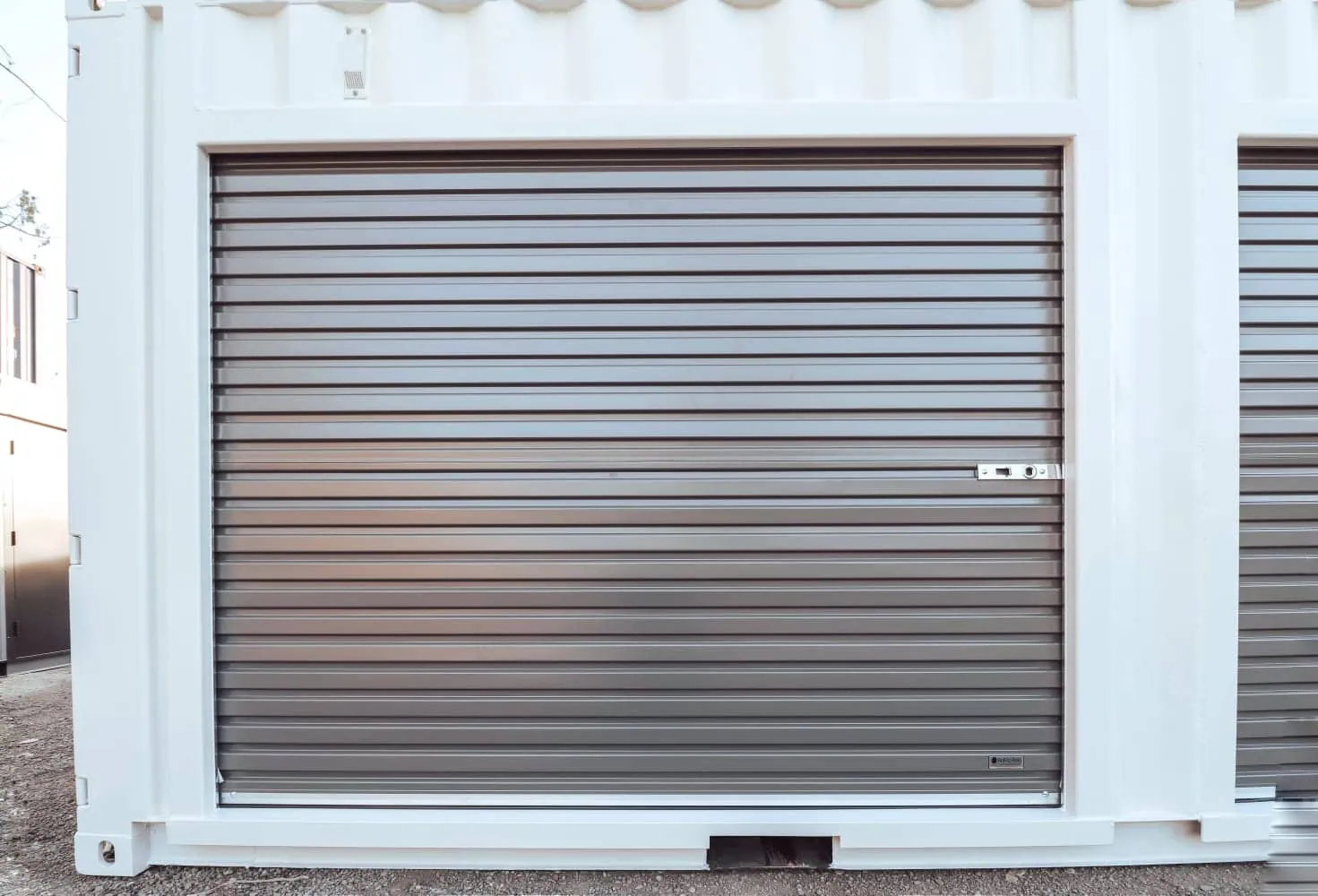

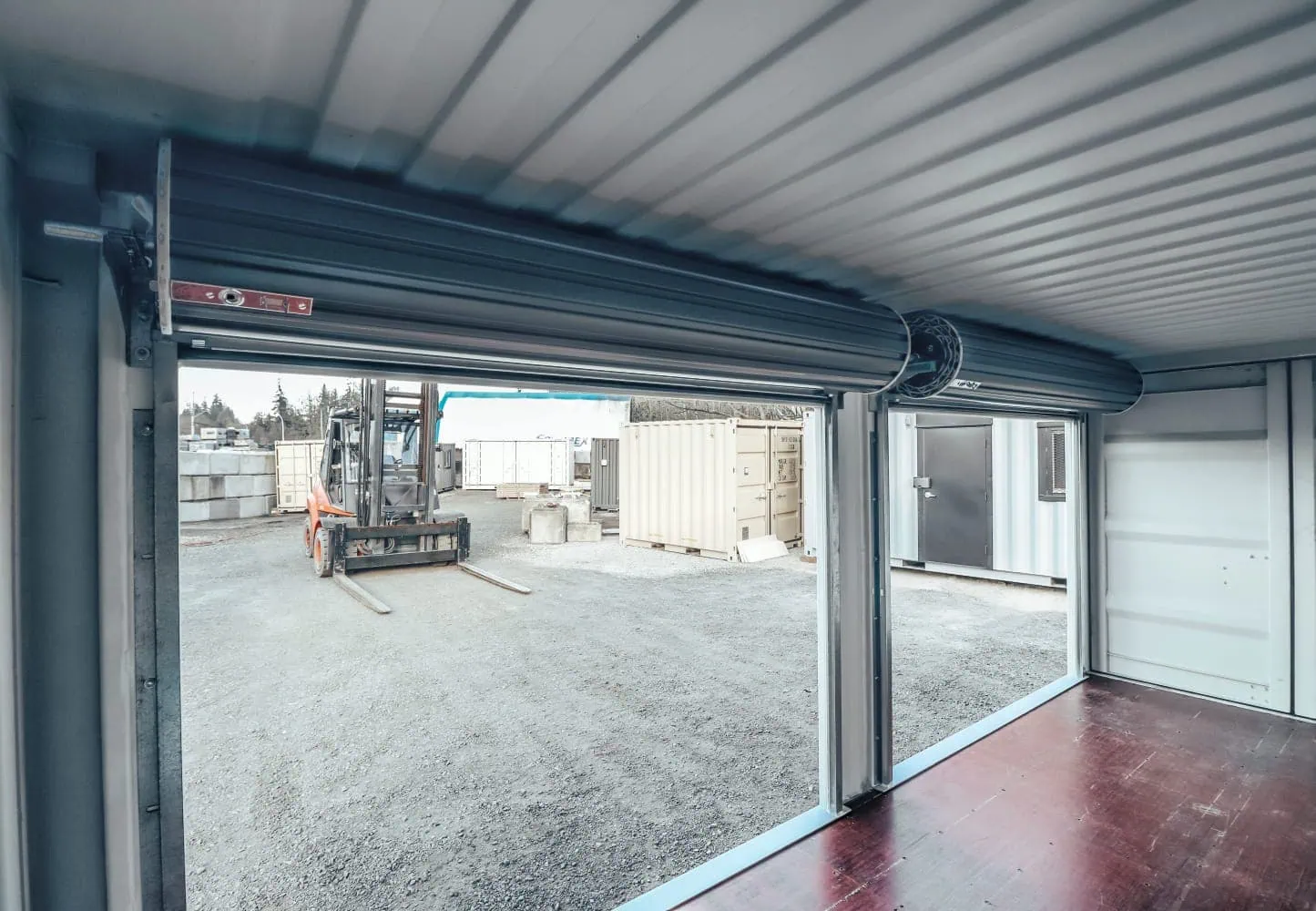

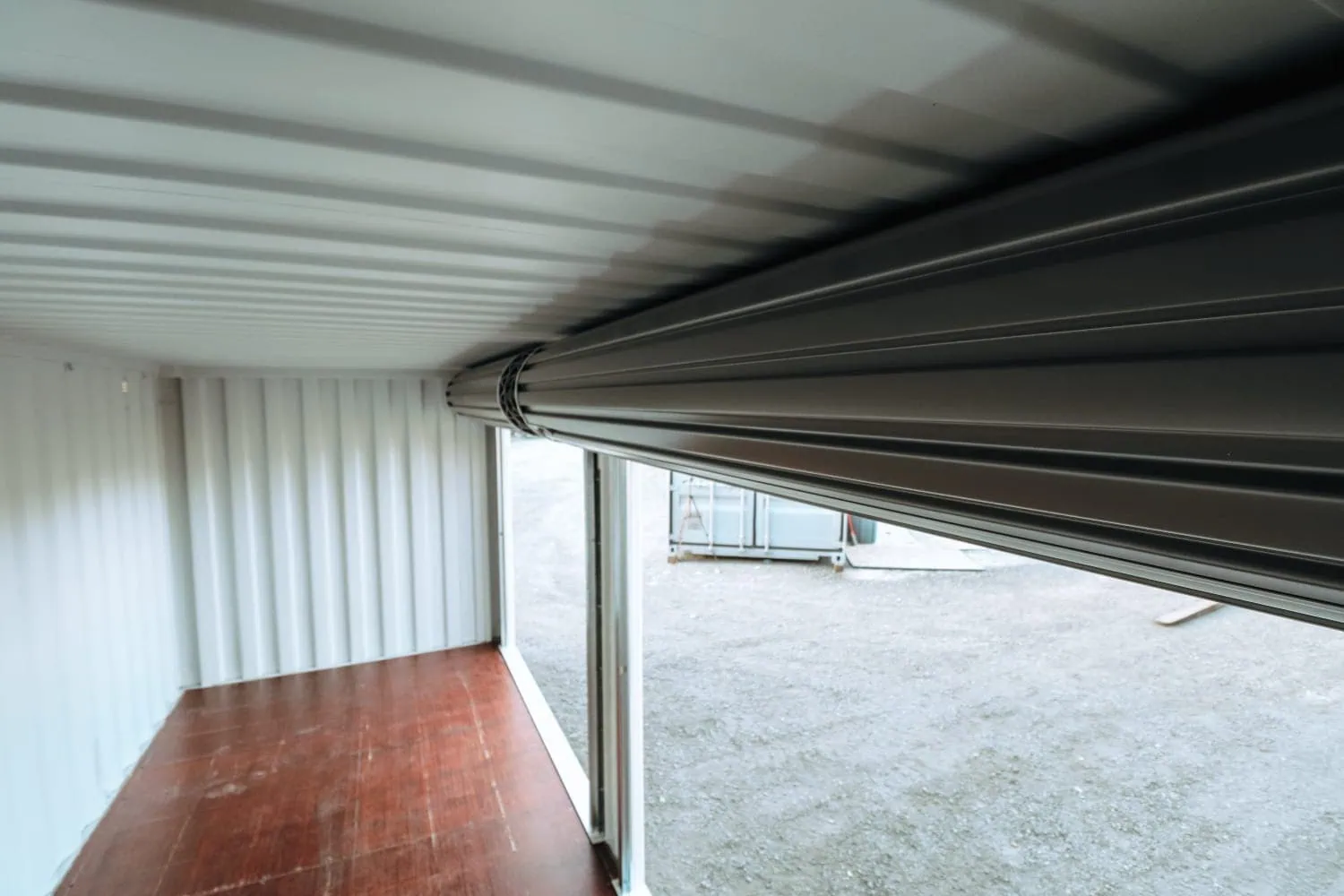

The roll-up door mechanisms consist of interlocking steel slats that track along guides and coil into housings above each door opening when raised. This design eliminates the need for swing clearance required by standard cargo doors and allows each door to operate independently. Each door includes locking hasps compatible with padlocks or security seals.

The floor system utilizes marine-grade plywood panels secured to steel cross-members, providing load-bearing capacity suitable for palletized goods, machinery, and equipment . Standard cargo doors at one end provide additional access when required.

The container includes eight standard corner castings for handling and positioning. Forklift pockets are positioned along the container base, allowing repositioning with standard forklift equipment.

Technical Specifications

• External Length: 20 ft (6.06 m)

• External Width: 8 ft (2.44 m)

• External Height: 9 ft 6 in (2.90 m)

• Internal Length: 19 ft 4 in (5.89 m)

• Internal Width: 7 ft 8 in (2.34 m)

• Internal Height: 8 ft 10 in (2.69 m)

• Approx. Interior Volume: 1,314 ft³ (37.3 m³)

• Door Configuration: Two side roll-up doors plus end cargo doors

• Floor Material: Marine-grade plywood

• Frame Material: Corten steel

• Locking System: Lock hasps, padlock compatible

• Tare Weight: 4,600 – 5,100 lbs (2,100 – 2,300 kg)

• Max Payload: 60,000 – 62,000 lbs

• Forklift Pockets: Included, 4 positions

• Corner Castings: Standard, 8 positions

Intended Use

This container is suited for the following applications:

• Warehouse and distribution operations requiring flexible access

• Equipment and tool storage at construction sites

• Multi-tenant storage facilities with designated access points

• Fleet operations requiring quick equipment retrieval

• Industrial and commercial storage with high turnover of goods

The two side door configuration allows loading and unloading from multiple positions, reducing handling time and improving operational efficiency.

Package Includes

• 20ft high cube container with two side roll-up doors

• Marine-grade plywood floor

• Standard end cargo doors with locking hardware

• Corner castings (8 total)

• Lock hasps on each roll-up door

• Forklift pockets (4 positions)
