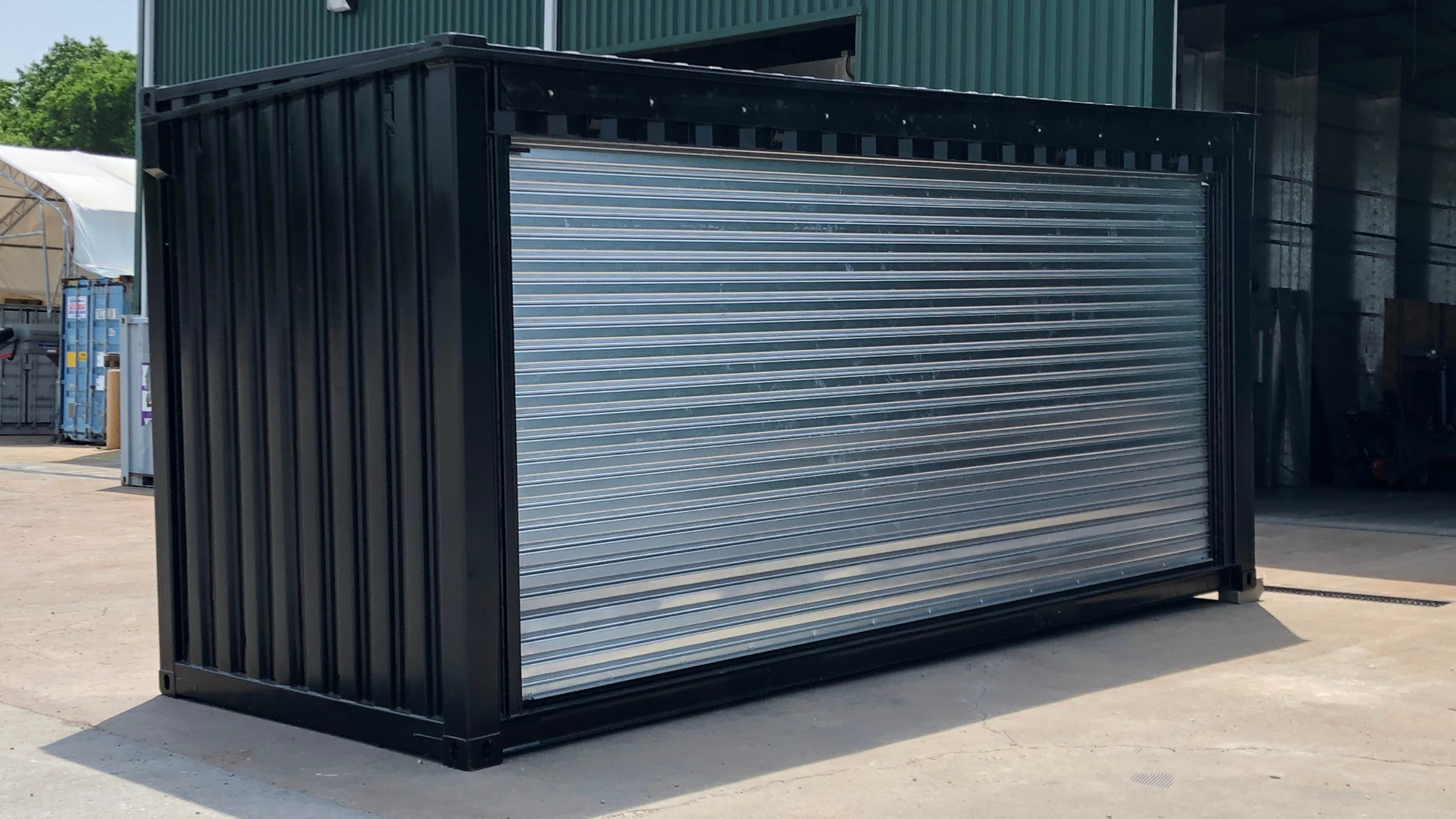

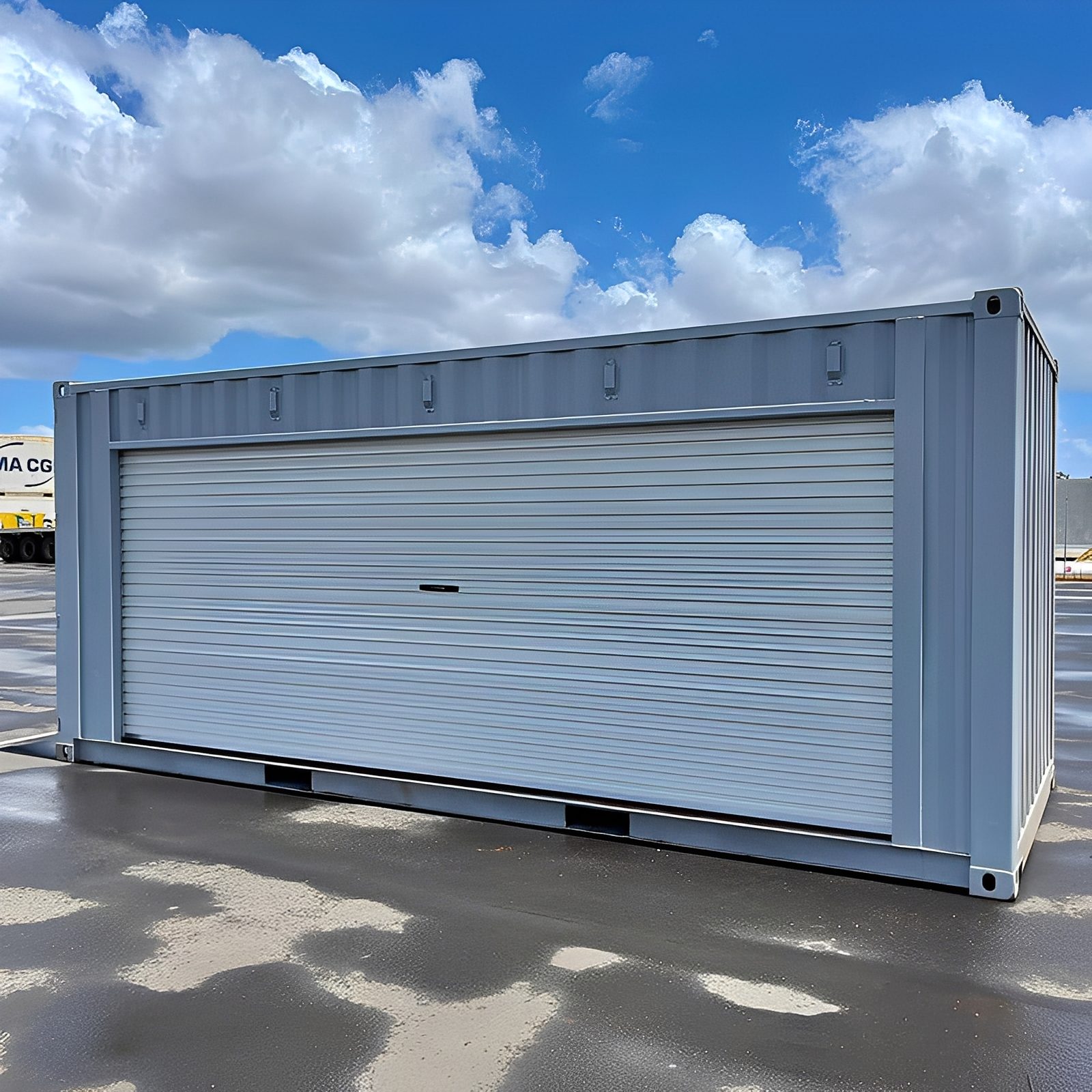

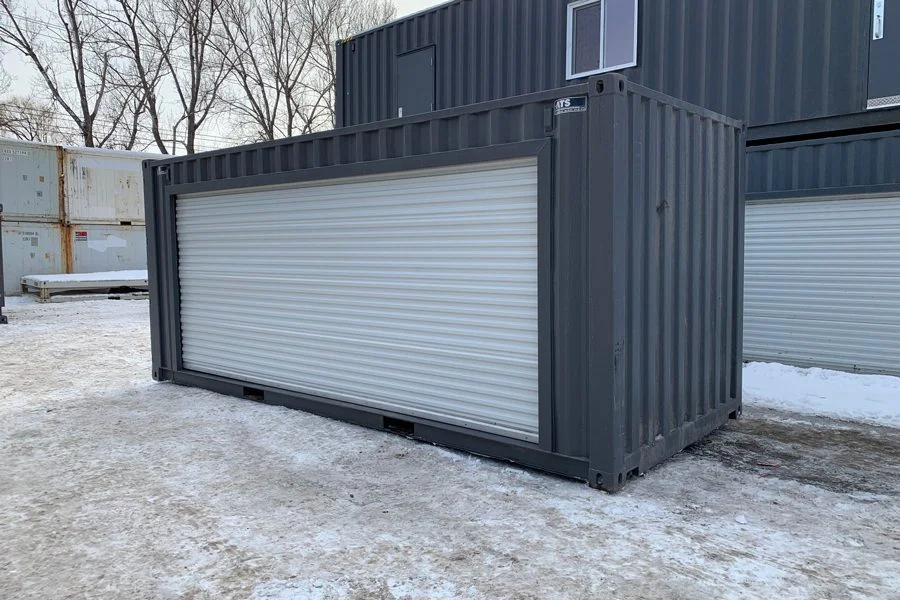

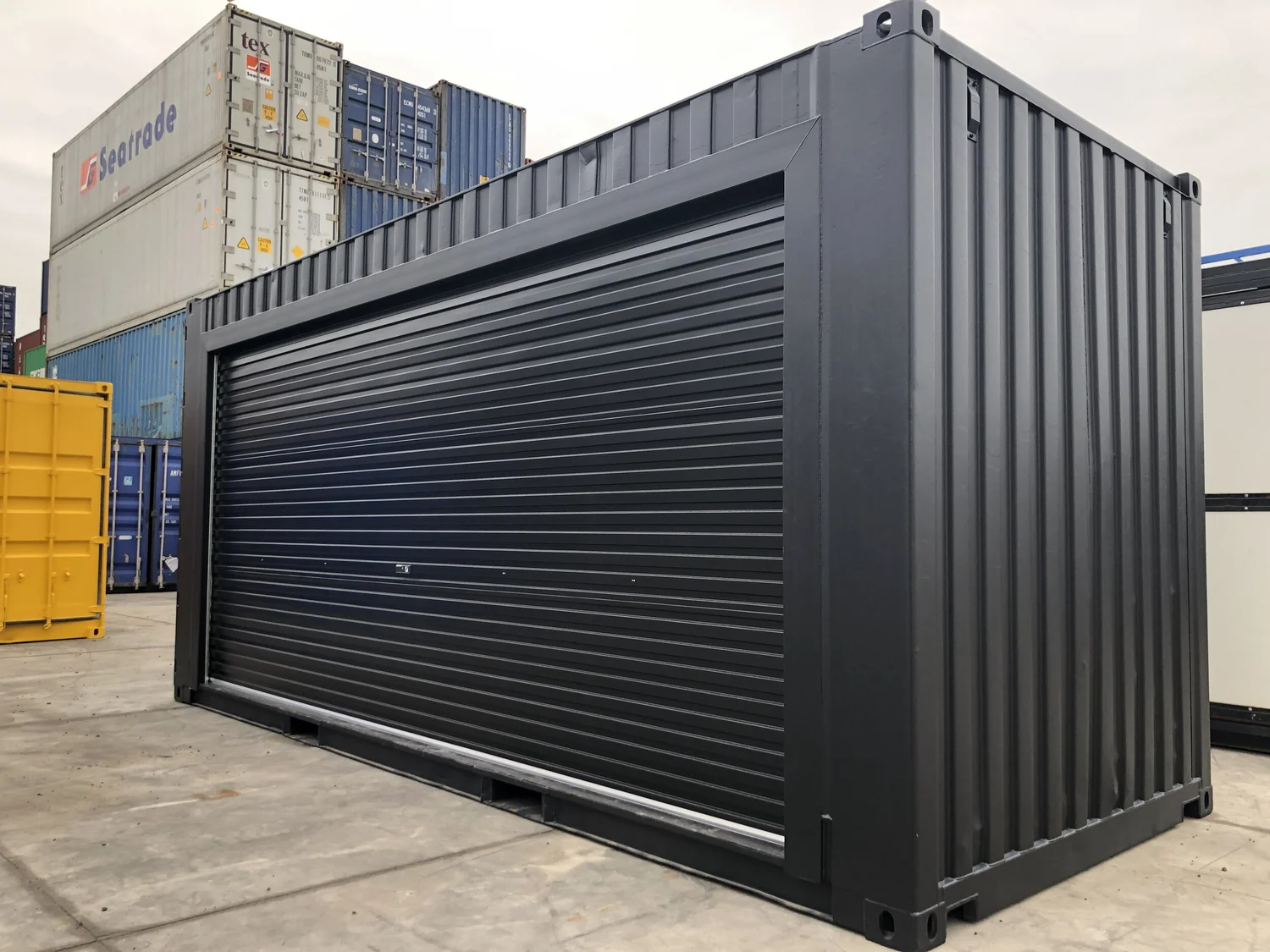

20ft Shipping Container Full-Length Roll-Up Door

The 20ft shipping container with a full-length roll-up door provides an alternative access solution for operations requiring a wide, unobstructed opening along the side of the unit. This container is suited for applications where full-side loading capability, drive-through access, or maximum entry width improves operational efficiency.

Key Features

• Full-length roll-up door providing access along the entire side of the container

• Corten steel construction with weather-resistant properties for outdoor placement

• Marine-grade plywood flooring over steel cross-members

• Spring-assisted mechanism for smooth manual operation

• Locking system compatible with padlocks for security applications

• Forklift pockets for ease of handling and positioning

• Corner castings for lifting and stacking compatibility

Detailed Description

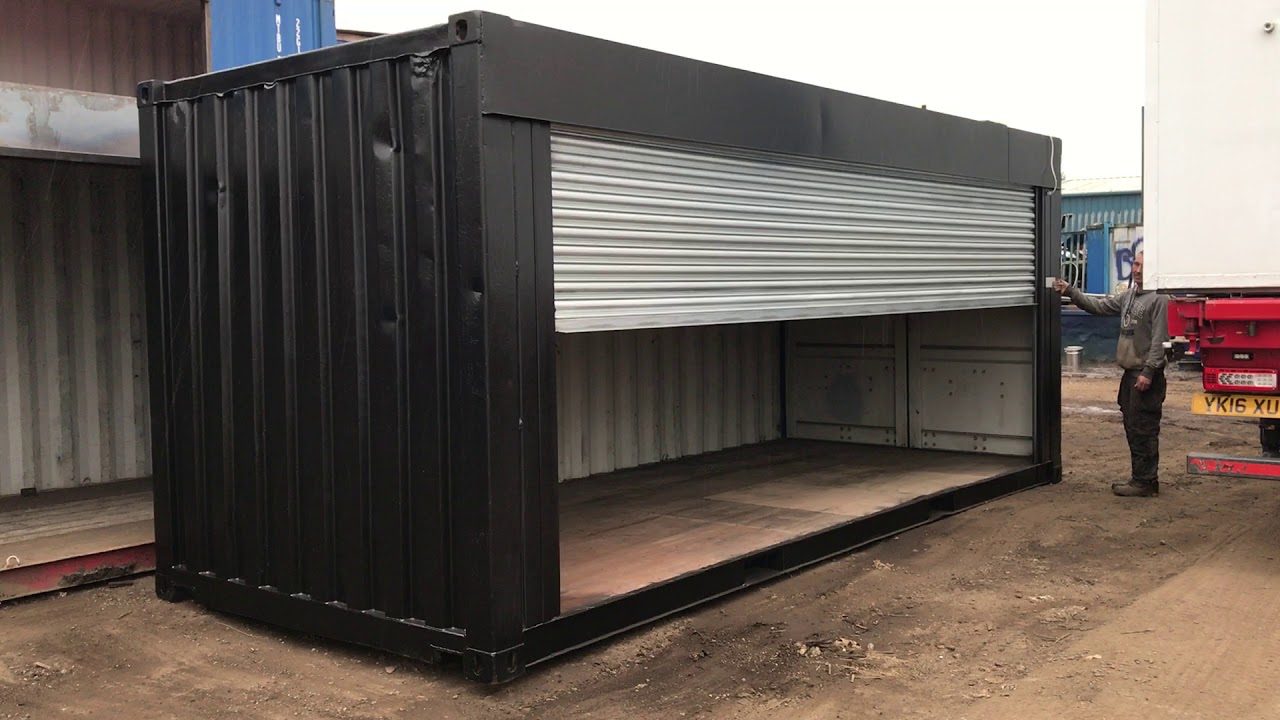

The 20ft shipping container with a full-length roll-up door is designed for applications requiring maximum access to stored materials across the container length . Unlike standard cargo doors that swing outward and require clearance space in front of the container, the roll-up door operates vertically, coiling into a housing above the opening when raised . This configuration eliminates the need for swing clearance, making it suitable for locations where space is restricted.

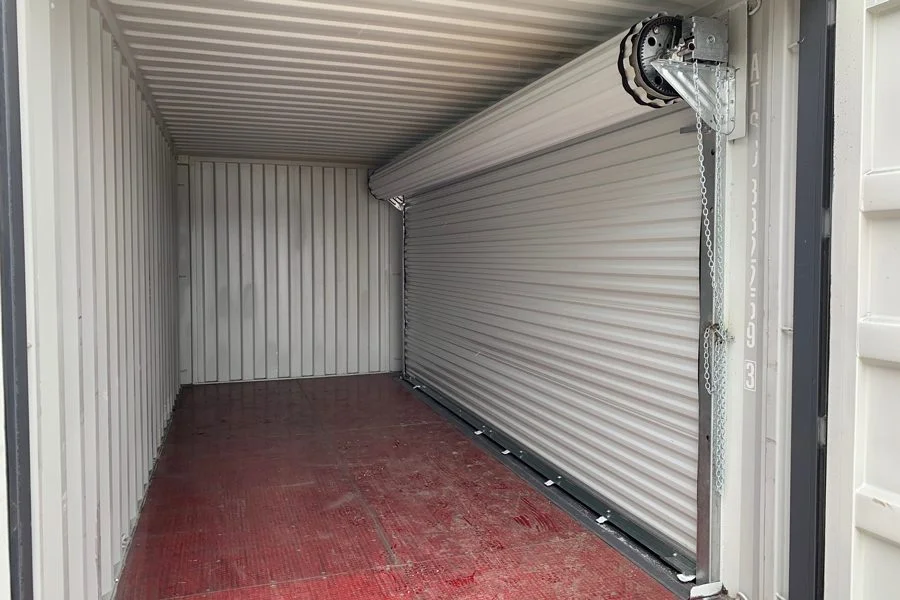

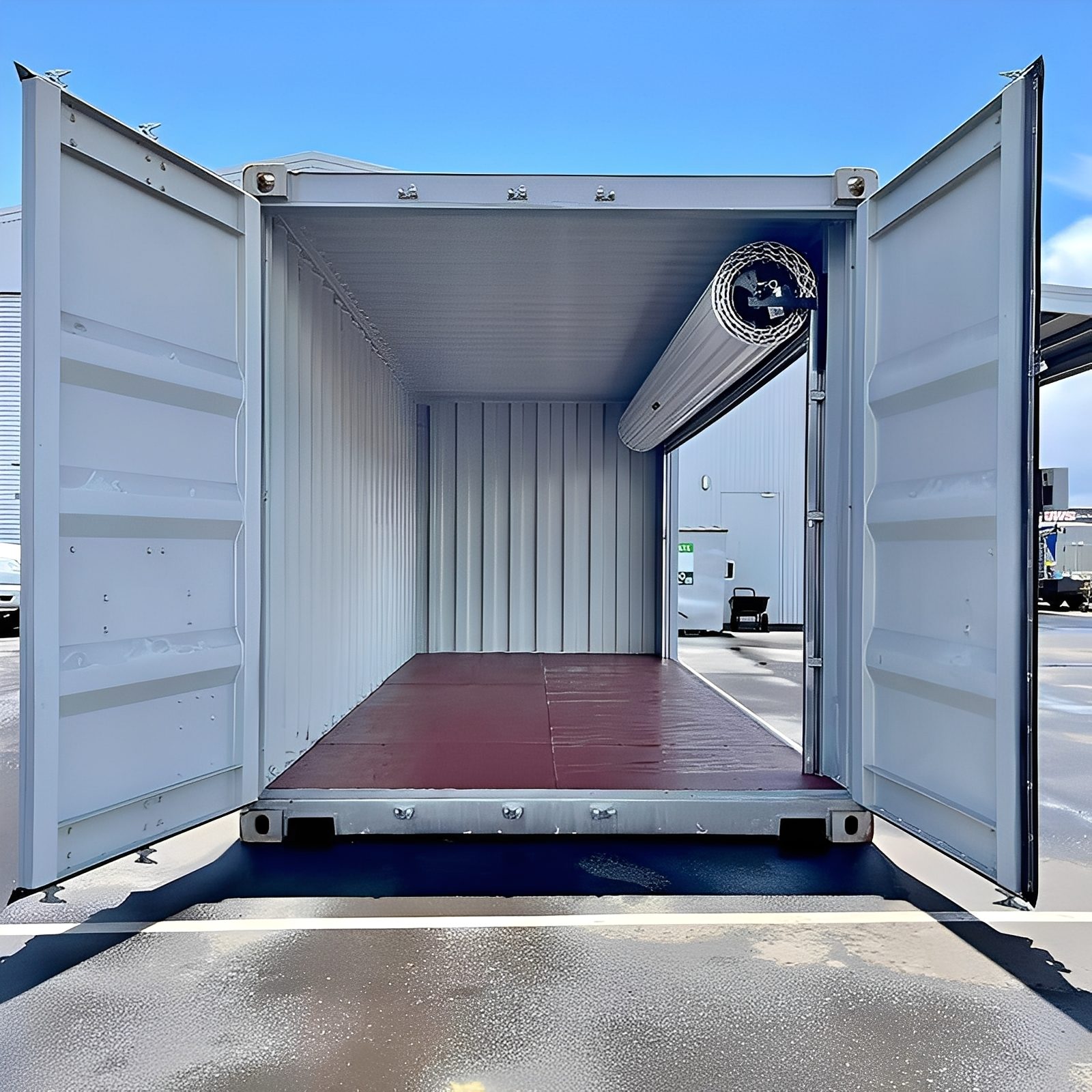

Constructed from Corten steel, the container body provides structural integrity and resistance to atmospheric corrosion. The roll-up door mechanism consists of interlocking steel slats that track along guides and coil overhead . The door is constructed from galvanized steel with weather seals to maintain the container’s weather resistance when closed .

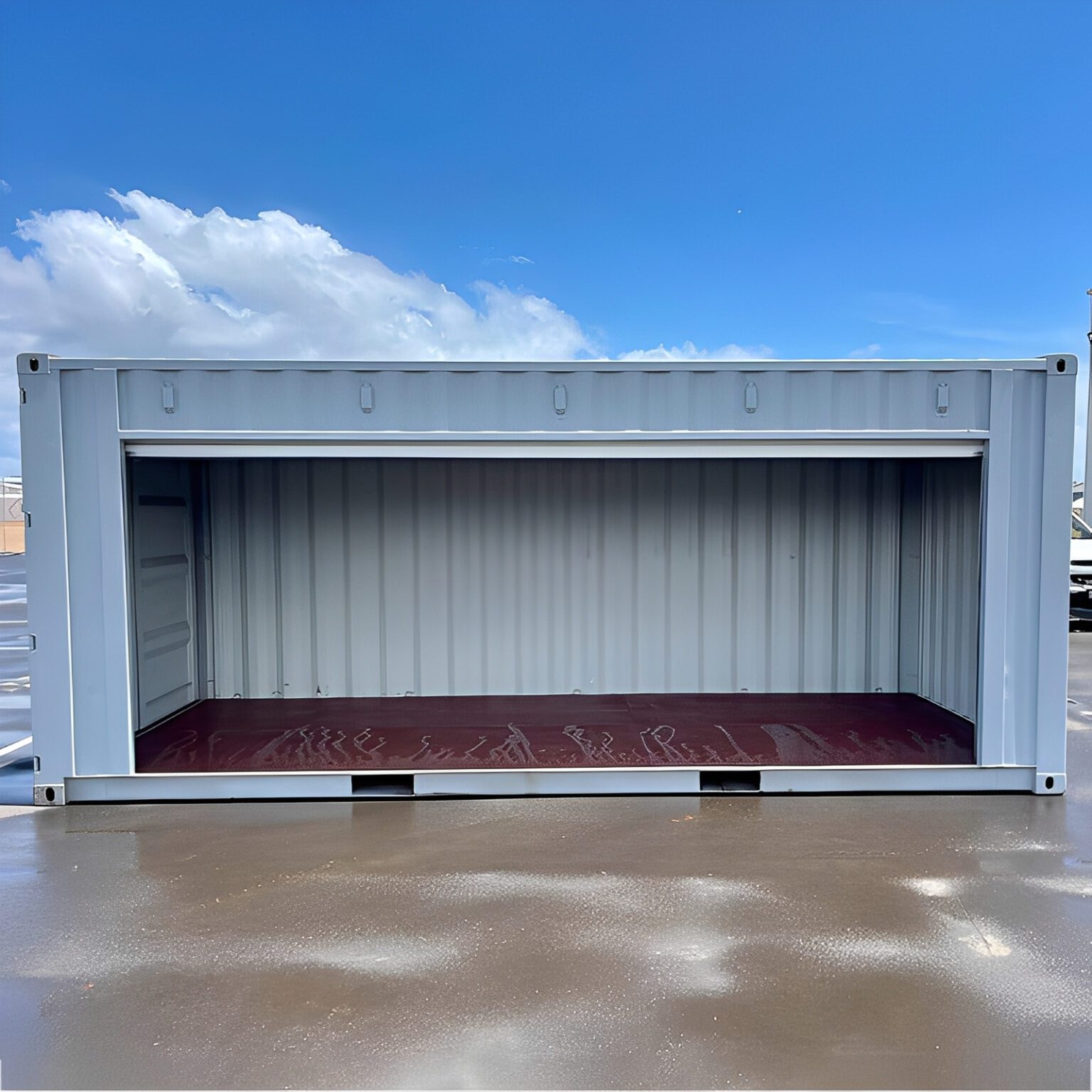

The floor system utilizes marine-grade plywood panels secured to steel cross-members, providing load-bearing capacity suitable for palletized goods, machinery, and equipment. The full-length opening allows forklifts to access the container interior from the side, streamlining loading and unloading operations .

The container includes corner castings at all eight corners for lifting and stacking compatibility with standard handling equipment. Forklift pockets are positioned along the container base, allowing repositioning with standard forklift equipment. The locking system includes hasps compatible with padlocks or security seals .

Technical Specifications

• External Length: 20 ft (6.06 m)

• External Width: 8 ft (2.44 m)

• External Height: 8 ft 6 in (2.59 m)

• Internal Length: 19 ft 4 in (5.89 m)

• Internal Width: 7 ft 8 in (2.34 m)

• Internal Height: 7 ft 10 in (2.38 m)

• Door Type: Full-length roll-up, side-mounted

• Door Construction: 26-gauge galvanized steel with polyester paint finish

• Floor Material: Marine-grade plywood

• Frame Material: Corten steel

• Locking System: Lock hasps with padlock compatibility

• Approx. Interior Volume: 1,170 ft³ (33.1 m³)

• Floor Load Capacity: 16,000 lbs (7,260 kg)

• Forklift Pockets: Included, 4 positions

• Corner Castings: Standard, 8 positions

• Certification: CSC

Intended Use

This container is suited for the following applications:

• Drive-through or pass-through loading operations

• Equipment and material storage requiring full-side access

• Mobile workshops with wide entry for machinery and tools

• Distribution and logistics operations with high turnover of goods

• Commercial storage facilities requiring convenient access to inventory

The full-length roll-up door configuration provides flexibility for operations where loading from the side improves workflow, reduces handling time, or enables efficient access to stored materials across the entire container interior.

Package Includes

• 20ft shipping container with full-length side roll-up door

• Marine-grade plywood floor

• Corner castings (8 total)

• Lock hasps on roll-up door

• Forklift pockets (4 positions)

• CSC certification plate
