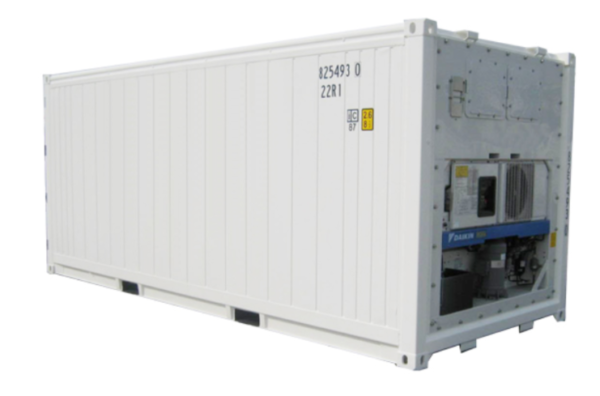

Refrigerated Storage Containers – Reefers

Refrigerated storage containers, commonly known as reefers, are temperature-controlled units designed for the storage and transport of goods requiring a stable, chilled, or frozen environment. They are actively cooled using an integral refrigeration system, making them distinct from insulated containers which lack a powered cooling unit .

Key Features

• Active Temperature Control: Integrated refrigeration unit provides precise temperature management, typically ranging from -35°C to +30°C to accommodate a variety of products .

• Superior Insulation: Walls, ceiling, and floor are fitted with high-performance insulation to minimize heat transfer and maintain internal temperatures efficiently .

• Advanced Air Circulation: A T-bar flooring system and forced-air fans ensure cold air circulates uniformly around palletized cargo, preventing hotspots and maintaining product integrity .

• Hygienic Interior: Interior is typically lined with stainless steel or food-grade aluminum, providing a durable, corrosion-resistant, and easy-to-clean surface .

• Robust Construction: Built with a durable steel or aluminum outer shell to withstand the demands of transport and outdoor storage .

• Data Logging: Features microprocessor-based controls for precise monitoring, data logging, and alarm functions .

Detailed Description

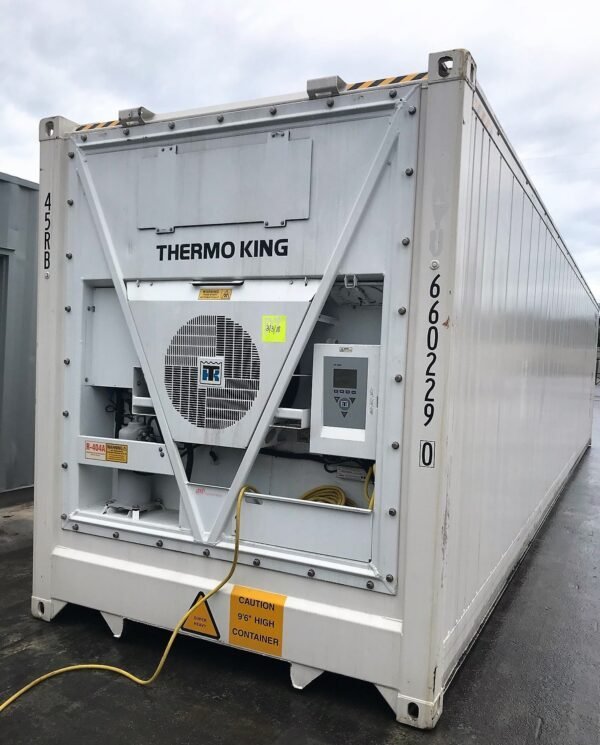

Reefer containers are constructed to be both wind and watertight, with a two-layered vacuumed wall structure that creates a highly effective thermal barrier . The heart of the system is the refrigeration unit, which operates on a three-phase electrical power supply. It uses a vapour-compression cycle to cool the air, which is then circulated through the container .

The primary purpose of a reefer is to provide a stable, predetermined environment for temperature-sensitive goods, protecting them from spoilage and degradation . They are widely used for both active shipping and as a cost-effective, versatile alternative to constructing permanent cold storage facilities on-site .

Technical Specifications

Specifications are representative for the majority of reefer containers and may vary.

20ft Refrigerated Container

• Internal Dimensions (L x W x H): Approx. 5.44 m x 2.29 m x 2.27 m (17.9′ x 7.5′ x 7.5′)

• Cubic Capacity: Approx. 28.3 m³ (999 ft³)

• Approx. Tare Weight: 3,080 kg (6,791 lbs)

• Max Gross Weight: Approx. 30,480 kg (67,196 lbs)

• Door Opening (W x H): Approx. 2.23 m x 2.10 m (7.3′ x 6.9′)

40ft High Cube Refrigerated Container

• Internal Dimensions (L x W x H): Approx. 11.58 m x 2.29 m x 2.50 m (38.0′ x 7.5′ x 7.9′)

• Cubic Capacity: Approx. 67.3 m³ (2,380 ft³)

• Approx. Tare Weight: 4,480 kg (9,880 lbs)

• Max Gross Weight: 34,000 kg (74,960 lbs)

• Door Opening (W x H): Approx. 2.29 m x 2.57 m (7.5′ x 8.4′)

Intended Use

Reefer containers are suited for a wide range of industries requiring temperature-controlled environments:

• Food & Beverage: Storage and transport of produce, meat, seafood, dairy, frozen goods, and beverages .

• Pharmaceuticals & Healthcare: Temperature-controlled storage for vaccines, insulin, blood/plasma products, and other sensitive biologics .

• Chemicals & Industrial: Storage of materials and chemicals that are sensitive to temperature fluctuations .

• Events & Catering: On-site cold storage for large-scale events and catering operations .

• Logistics & Warehousing: A flexible alternative to permanent cold rooms for supply chain and distribution hubs .

Package Includes

• Refrigerated shipping/storage container

• Integral refrigeration unit

• Digital temperature control panel

• T-bar flooring for air circulation

• Stainless steel or food-grade aluminum interior lining

• Double cargo doors with locking hardware

• Data logging and alarm system (varies by model)

• CSC certification plate
