20ft Dual Temperature Refrigerated ISO Container

The 20ft dual temperature refrigerated container is a specialized intermodal unit designed for the simultaneous transport and storage of goods requiring two distinct temperature environments. Featuring an internal partition wall, this container allows separate sections to operate as a freezer and a chiller independently.

Key Features

• Dual temperature zones with an internal partition wall for simultaneous frozen and chilled storage

• Temperature range from -35°C to +30°C, configurable per section

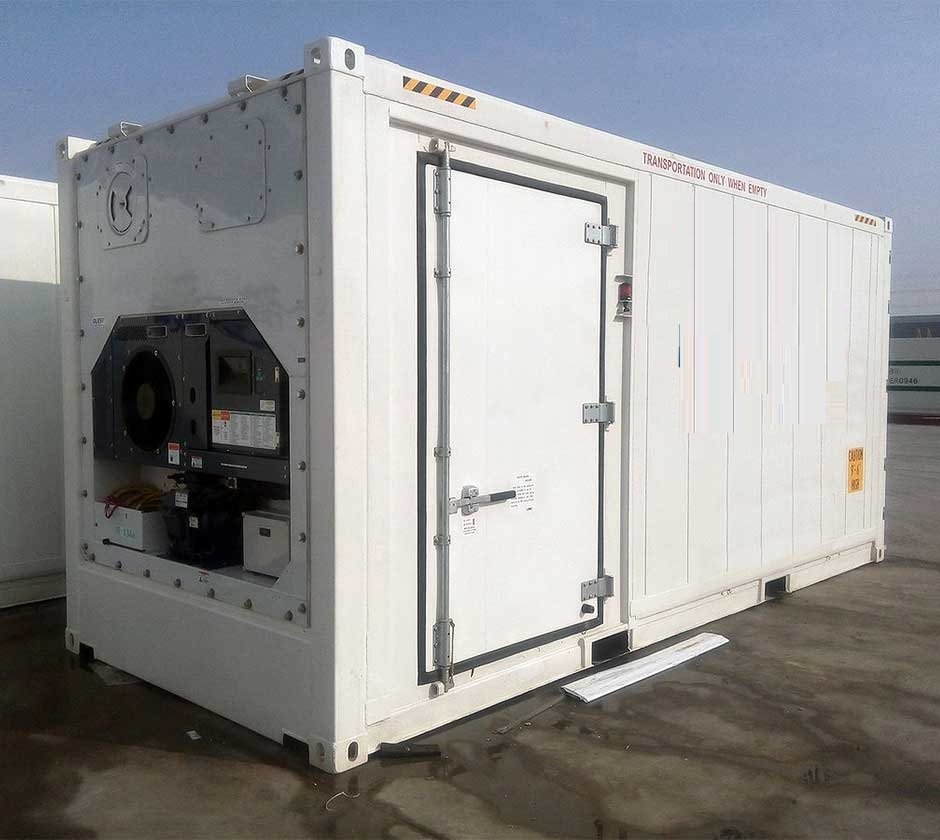

• Side access door providing entry to both sections for convenient loading and unloading

• ISO certified for intermodal shipping compatibility

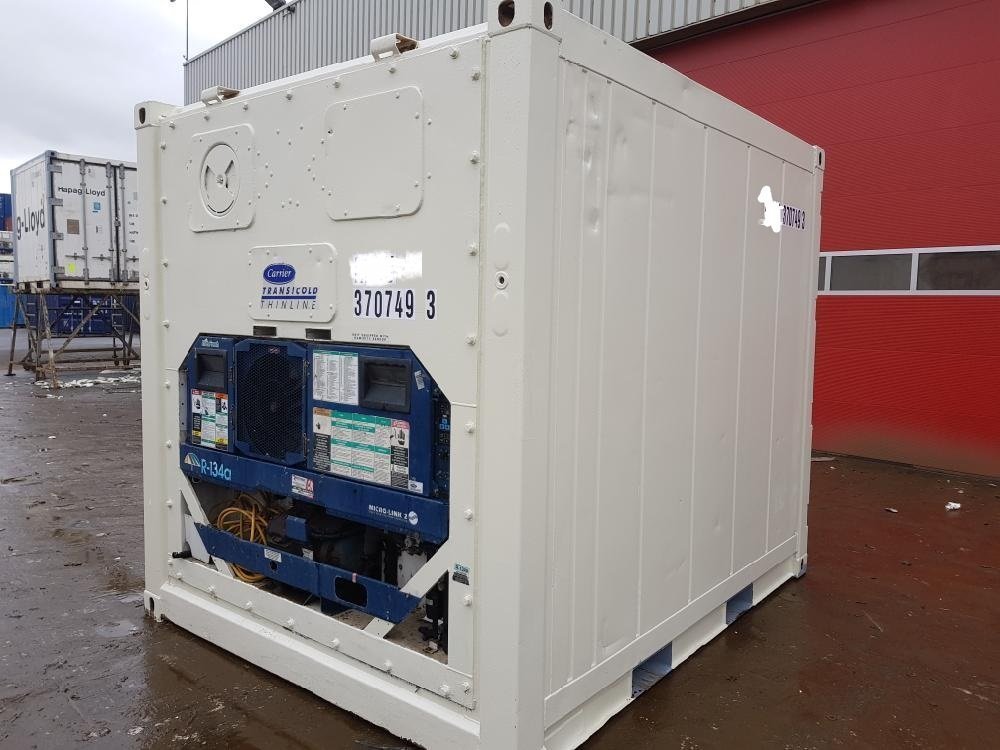

• High-performance refrigeration unit, typically a Carrier or Thermo King system

• Stainless steel interior for hygiene, durability, and corrosion resistance

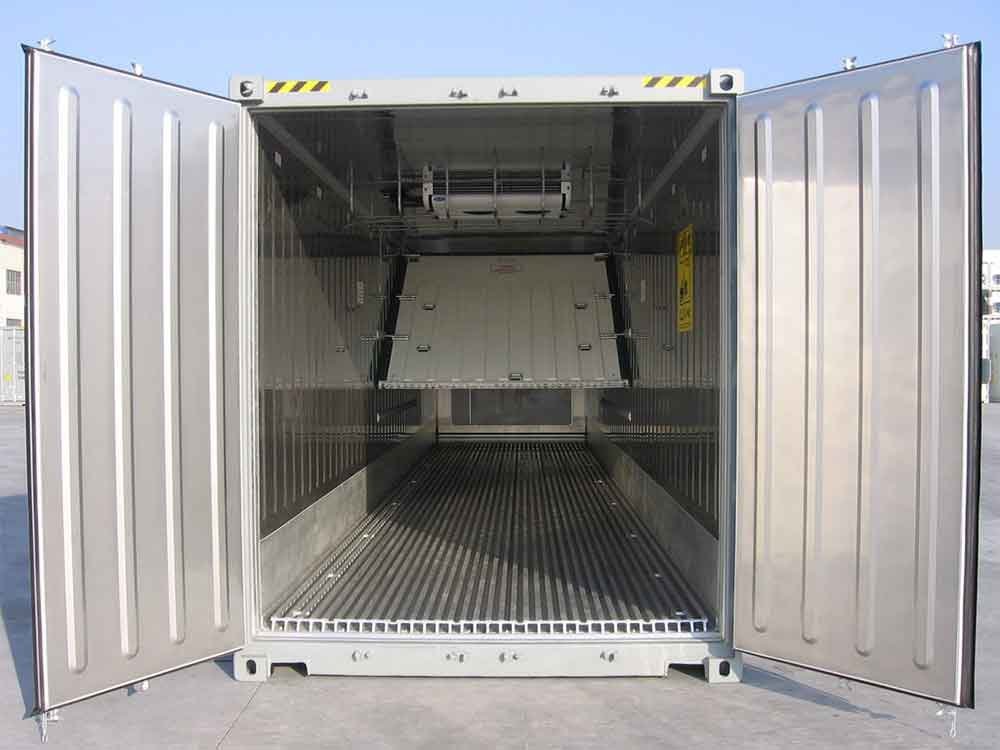

• Aluminum T-bar flooring for optimal air circulation beneath palletized cargo

• CSC certification for international shipping compliance

Detailed Description

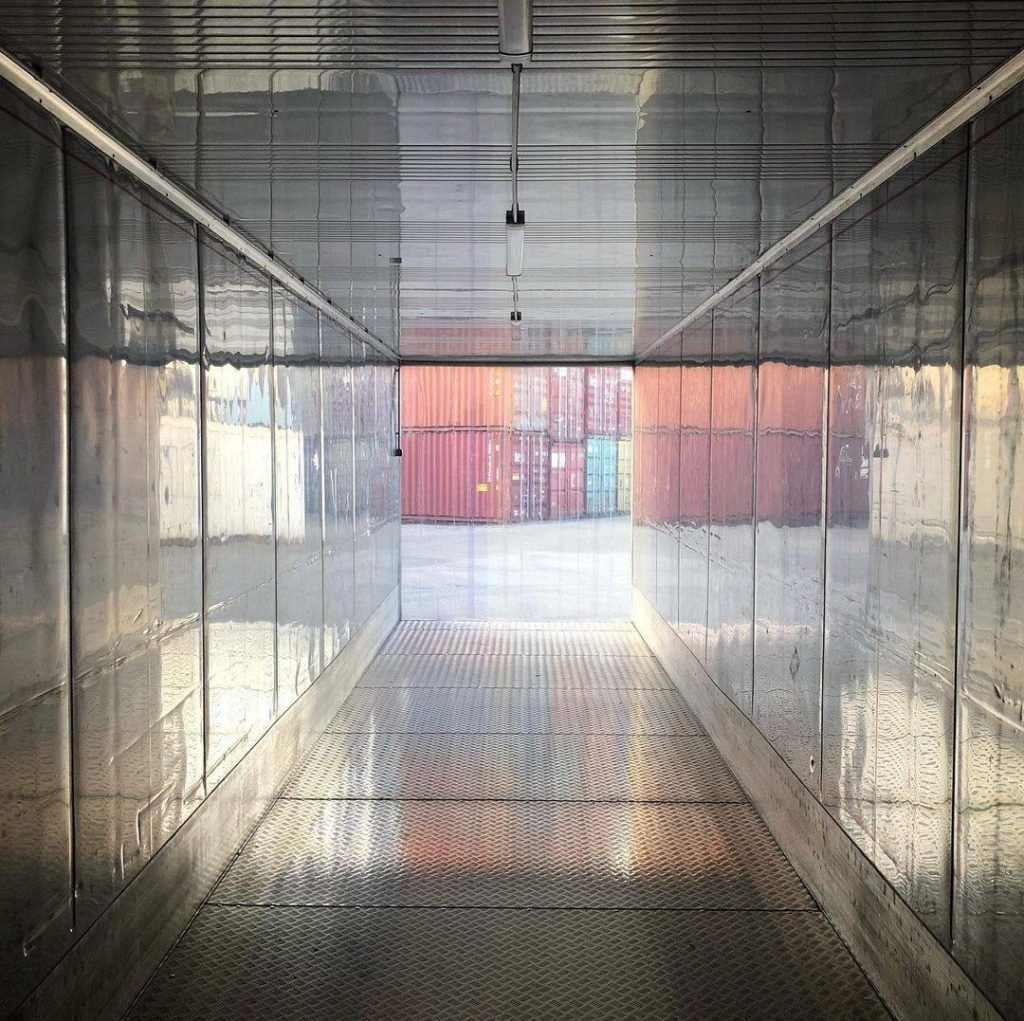

The 20ft dual temperature reefer container is constructed with a corrosion-resistant steel or aluminum exterior and a stainless steel interior lining. The unit is divided by a fixed or movable insulated partition wall, creating two separate temperature zones. This configuration enables the simultaneous storage of goods with different temperature requirements, such as frozen meats and fresh produce, within a single container.

The integral refrigeration system maintains temperatures as low as -35°C in the freezer section while the chiller section operates at higher temperatures, supporting diverse cold chain applications. The side access door provides direct entry to both compartments, improving operational efficiency for loading and inventory management.

The floor incorporates an aluminum T-bar system, ensuring cold air circulates effectively around palletized goods to maintain uniform temperatures throughout each zone. This design supports industries including food processing, pharmaceutical logistics, and agricultural export operations requiring multi-temperature handling.

Technical Specifications

• External Dimensions (L x W x H): 20 ft x 8 ft x 8 ft 6 in (6,058 x 2,438 x 2,591 mm)

• Internal Dimensions (L x W x H): 17 ft 10 in x 7 ft 6 in x 7 ft 4 in (5,450 x 2,270 x 2,250 mm)

• Cubic Capacity: 985 ft³ (27.9 m³)

• Tare Weight: 7,100 lbs (3,220 kg)

• Max Gross Weight: 52,910 lbs (24,000 kg)

• Max Payload: 45,810 lbs (20,780 kg)

• Temperature Range: -35°C to +30°C

• Power Supply: 380V-460V, 3-phase, 50/60 Hz

• Refrigeration Unit: Thermo King, Carrier, or Daikin

Intended Use

This container is suited for the following applications:

• Transport and storage of mixed temperature goods requiring both frozen and chilled environments

• Cold chain logistics for food processors, distributors, and retailers

• Pharmaceutical and biopharmaceutical supply chains with varied temperature requirements

• Agricultural export operations combining fresh produce with frozen products

• Event and catering logistics requiring dual-temperature storage

The dual temperature configuration provides cost efficiency by consolidating shipments with different temperature requirements into a single unit, reducing the need for multiple containers and improving operational efficiency.

Package Includes

• 20ft dual temperature refrigerated container with internal partition

• Integral refrigeration unit

• Stainless steel interior lining

• Aluminum T-bar flooring

• Side access door with locking hardware

• CSC and ISO certification documentation
