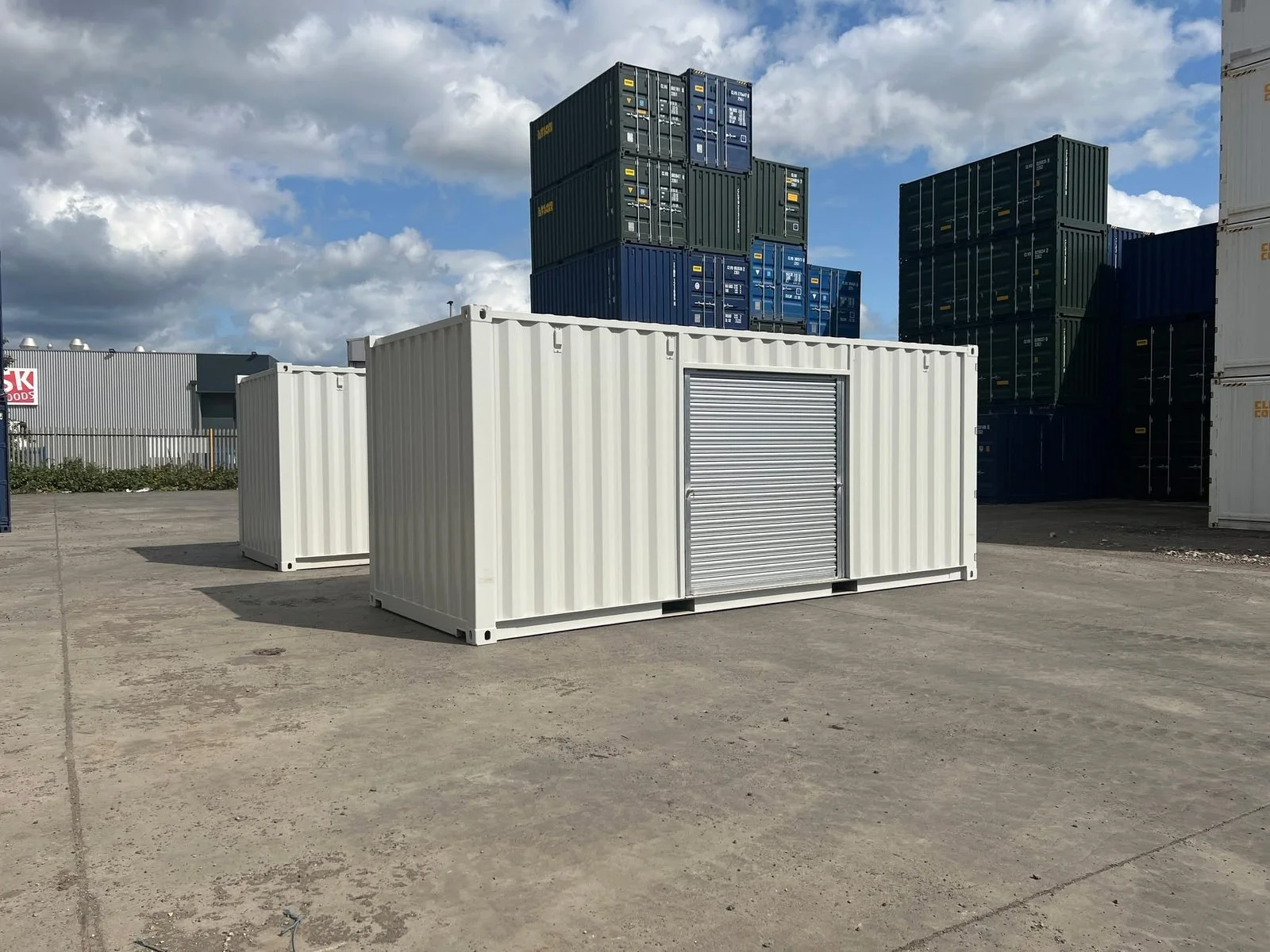

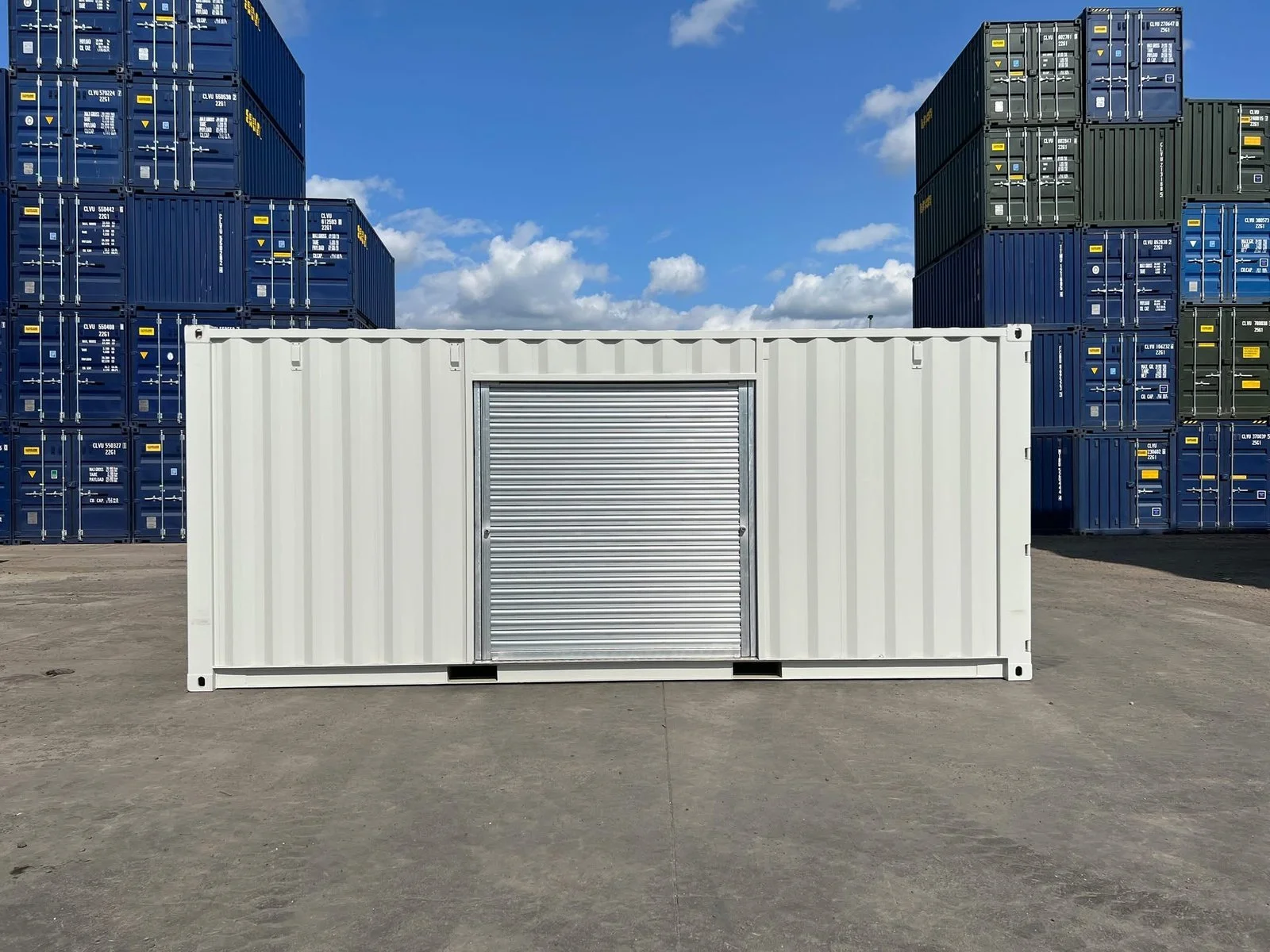

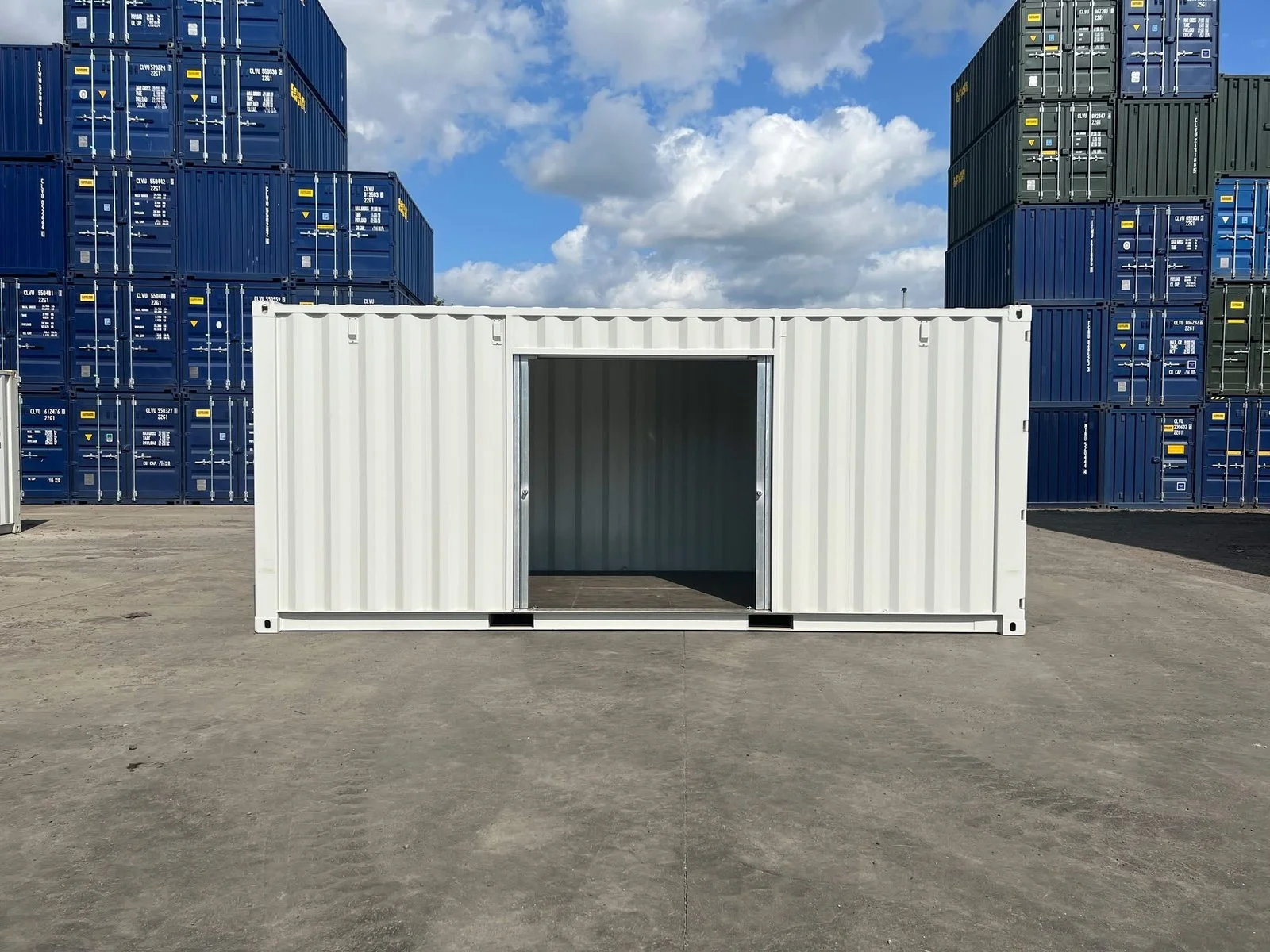

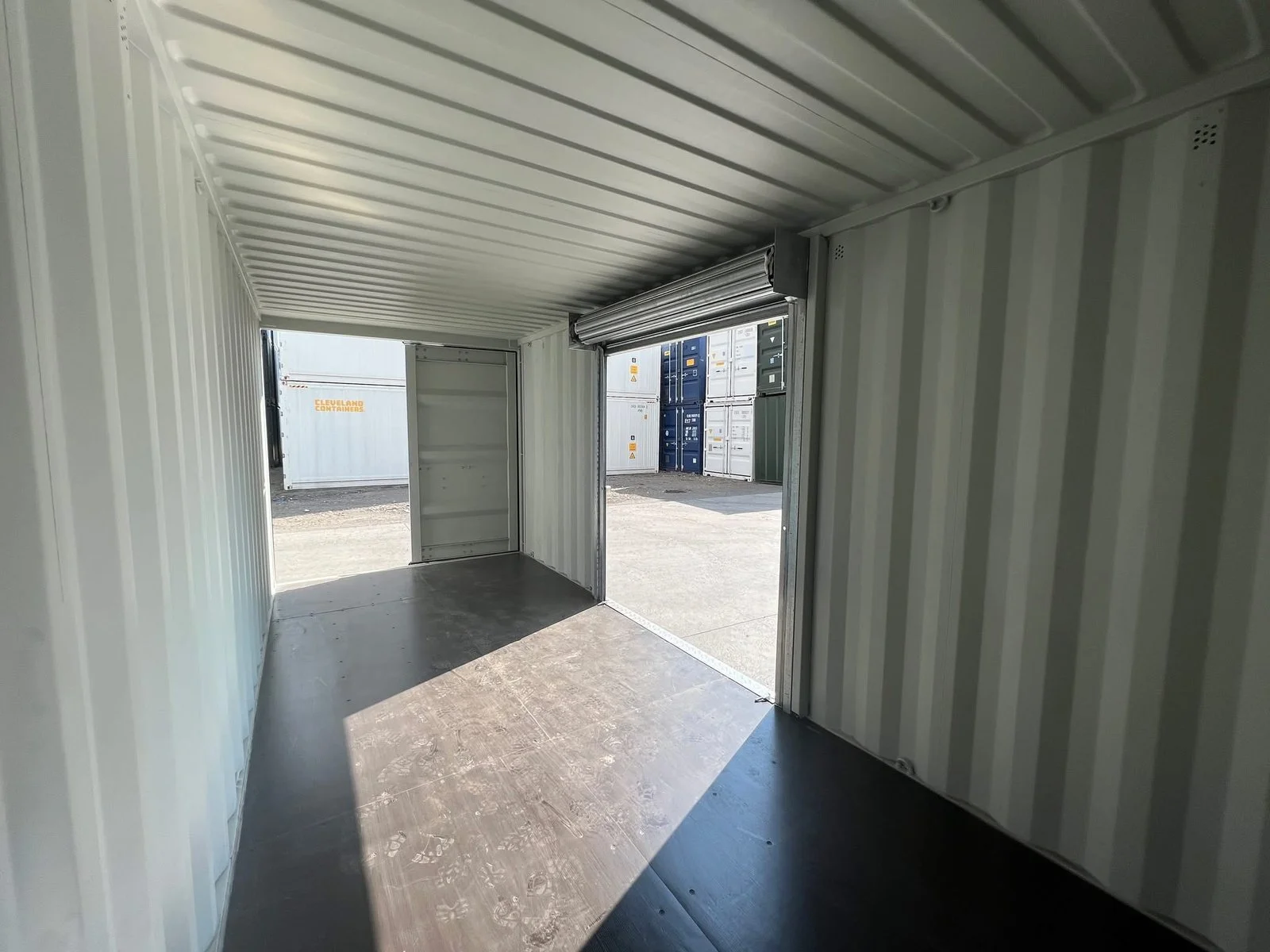

20ft Shipping Container Roll-Up Shutter

$2,800.00

20ft dry van shipping container with roll-up shutter door. Made from weather-resistant Corten steel with ISO certification and CSC plate. Wind and watertight design suitable for cargo transport, warehousing, and retail storage. Includes forklift pockets and locking mechanism for security.

Description

This 20ft shipping container features a roll-up shutter door for space-efficient and convenient access to the cargo area. Constructed from corrosion-resistant Corten steel, this wind and watertight unit provides secure storage and transport for dry goods across various applications. The roll-up door design allows for full-width access while requiring minimal clearance space during operation, making it suitable for locations with limited maneuvering area. This container is equipped with a valid CSC plate, certifying its structural fitness for international freight transport. It serves as a practical asset for businesses requiring reliable equipment for logistics, warehousing, or retail display applications.


Key Features

  • Roll-up shutter door for space-saving, full-width access

  • ISO certified and CSC plated for safe transport by sea, rail, and road

  • Durable Corten steel construction for weather resistance and longevity

  • Wind and watertight design maintains a protected environment for dry cargo

  • Forklift pockets integrated for efficient handling and repositioning

  • Locking mechanism provides secure closure


Detailed Description
The 20ft dry van container with roll-up shutter offers a practical alternative to traditional hinged doors. The roll-up mechanism allows the door to retract vertically, occupying minimal space when open and enabling efficient loading and unloading even in confined areas. This feature is particularly beneficial for retail pop-up locations, warehouse access points, or sites where overhead clearance is limited.

Constructed from high-tensile Corten steel, the container is engineered to withstand harsh environmental conditions. The steel’s corrosion-resistant properties contribute to the unit’s longevity, while the wind and watertight seals ensure cargo remains protected from moisture and debris during transit or storage. The container’s double-door design at the rear also includes a locking mechanism for added security, with the roll-up door equipped with a secure locking system to prevent unauthorized access.

The container maintains standard ISO dimensions, ensuring compatibility with existing logistics infrastructure, including container chassis, handling equipment, and stacking systems. Its robust construction and certified structural integrity make it suitable for repeated transport cycles, while its versatility extends to stationary applications such as on-site storage, mobile workshops, or retail kiosks.


Technical Specifications

Specification Details
Container Type 20ft Dry Van – Roll-Up Shutter Door
External Dimensions (L x W x H) 20′ x 8′ x 8’6″ (6.06m x 2.44m x 2.59m)
Internal Dimensions (L x W x H) 19’4″ x 7’8″ x 7’10” (5.9m x 2.35m x 2.39m)
Door Opening (W x H) Full-width roll-up configuration
Cubic Capacity Approximately 1,170 ft³ (33.1 m³)
Tare Weight Approximately 4,850 – 5,230 lbs (2,200 – 2,370 kg)
Maximum Payload Approximately 61,970 – 62,611 lbs (28,110 – 28,400 kg)
Maximum Gross Weight 67,200 lbs (30,480 kg)
Material Corrosion-resistant Corten steel
Door Type Roll-up shutter door with locking mechanism

Intended Use
This container is designed for the secure transportation and storage of dry cargo across road, rail, and sea networks. The roll-up shutter configuration makes it particularly suitable for applications requiring frequent access or space-efficient door operation, such as retail pop-up shops, mobile storage, and warehousing. It is compatible with standard container handling equipment and is suitable for use in logistics, retail, and industrial applications.
