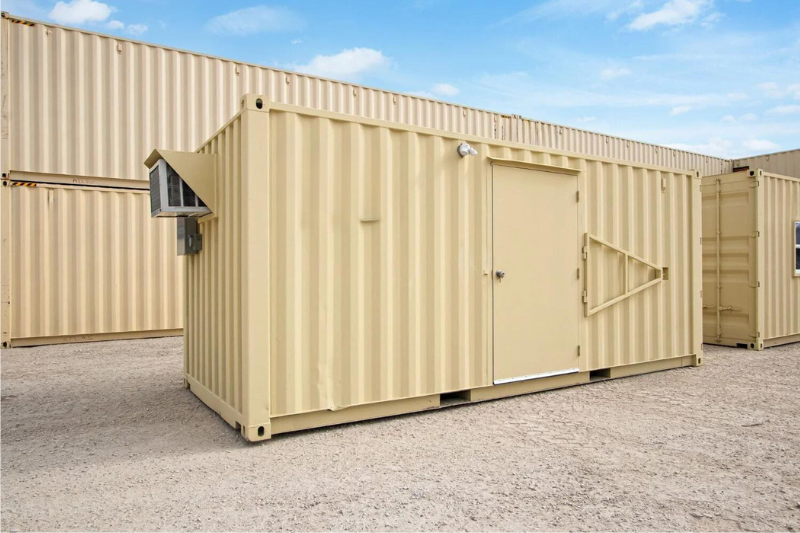

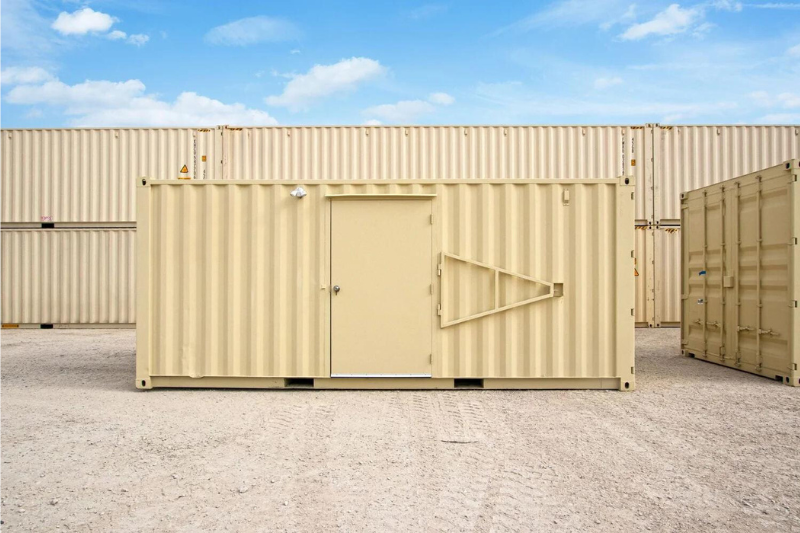

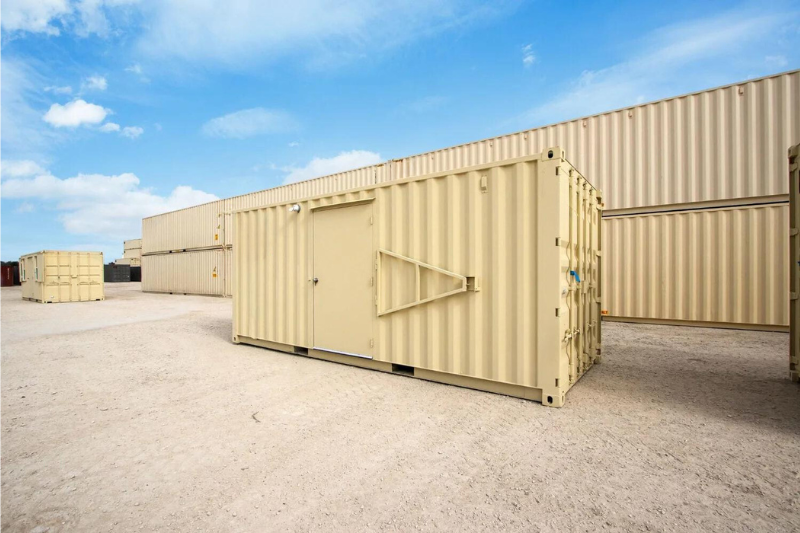

20ft Climate-Controlled Storage Container

The 20ft climate-controlled storage container is a modified shipping container designed for temperature-sensitive storage applications requiring stable environmental conditions. This unit integrates insulation and a climate control system to maintain consistent temperatures for assets, inventory, and materials that may be affected by temperature fluctuations .

Key Features

• Insulated interior with Styrofoam or polyurethane foam on walls and ceiling for thermal efficiency

• PTAC climate unit providing 15k BTU cooling capacity and 3.5 kW heating capacity

• Electrical system including 125A panel, LED lighting, and GFI outlet

• Marine-grade plywood or bamboo flooring over steel cross-members

• Operable cargo doors with steel locking bars for secure access

• Corten steel construction for structural integrity and corrosion resistance

• Corner castings and forklift pockets for handling and positioning

Detailed Description

The 20ft climate-controlled container is constructed from a steel shipping container and modified with high-density insulation and an active temperature management system. The container body is built from Cor-ten steel, providing structural integrity and resistance to corrosion .

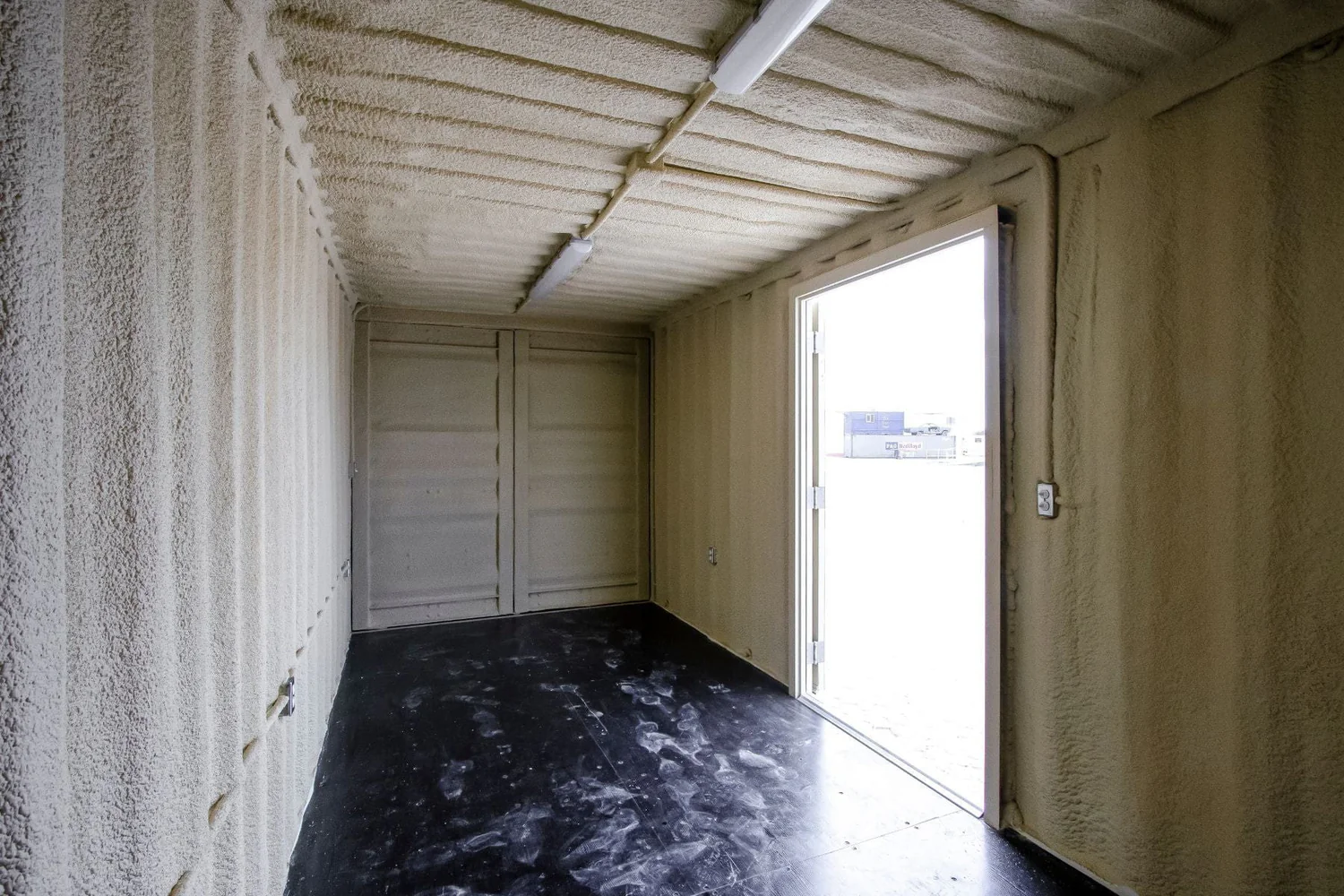

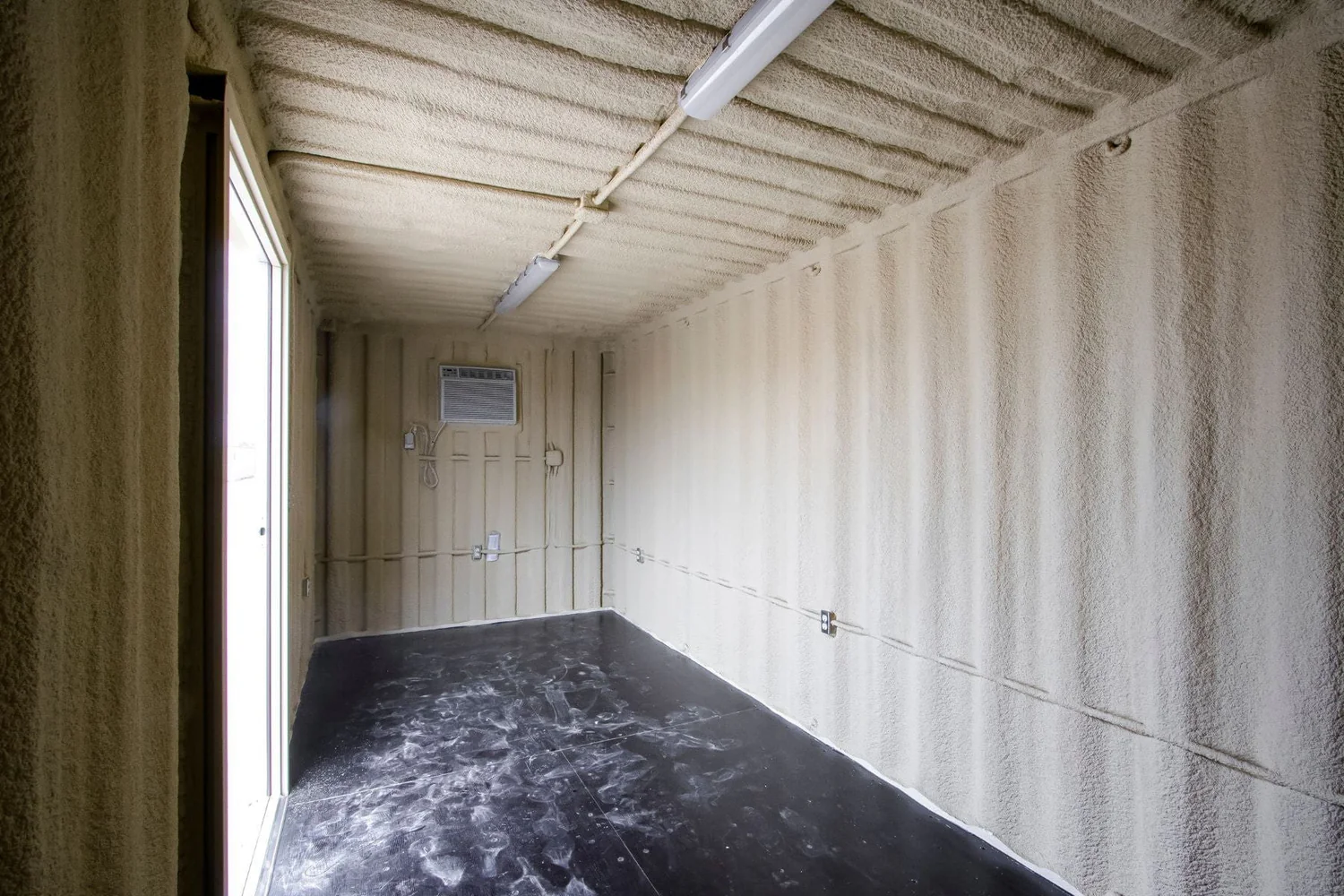

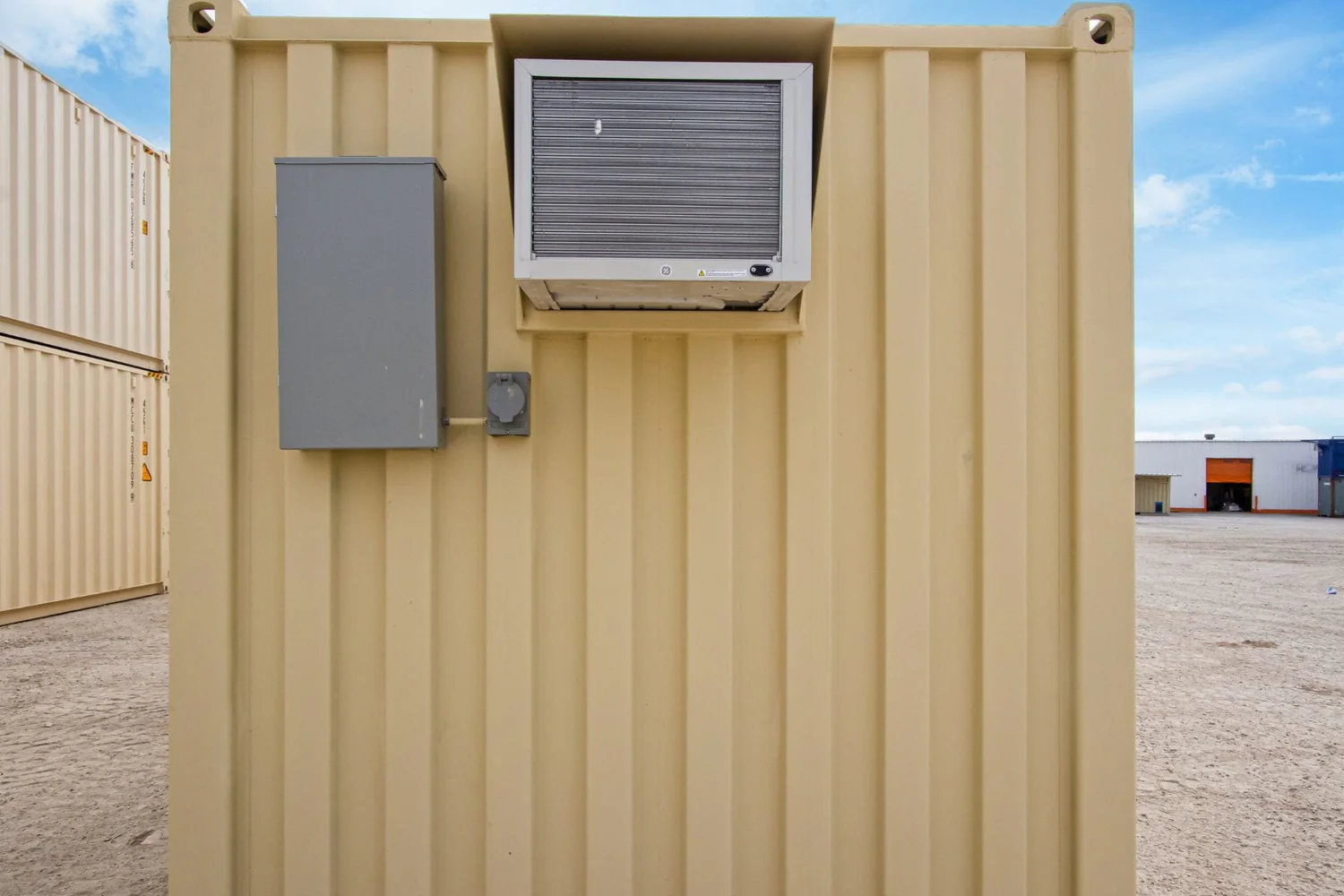

The insulation package typically includes rigid foam panels installed on interior walls and ceilings, reducing heat transfer and improving temperature retention . A PTAC (Packaged Terminal Air Conditioner) climate unit provides both cooling and heating, maintaining stable internal temperatures across seasonal variations .

The electrical system includes LED lighting, a GFI outlet, and a distribution panel with circuit protection . Operable cargo doors provide access for large items . The floor system utilizes durable marine-grade plywood or bamboo flooring over steel cross-members, supporting palletized goods and shelving systems.

Technical Specifications

• External Length: 19 ft 10.5 in (6.06 m)

• External Width: 8 ft (2.44 m)

• External Height: 8 ft 6 in (2.59 m) standard, high cube available

• Internal Length: 19 ft (5.79 m) approx.

• Internal Width: 7 ft 6 in (2.29 m) approx.

• Internal Height: 7 ft 5 in (2.26 m) approx.

• Approx. Interior Volume: 1,165 ft³ (33.1 m³)

• Floor Material: Marine-grade plywood or bamboo

• Frame Material: Corten steel

• Insulation: Styrofoam or polyurethane foam

• Climate Unit: PTAC with 15k BTU cooling, 3.5 kW heating

• Electrical: 125A panel, LED lighting, GFI outlet

• Corner Castings: Standard, 8 positions

• Door Type: Operable cargo doors

Intended Use

This container is suited for the following applications:

• Storage of temperature-sensitive equipment and materials

• Commercial warehousing requiring stable environmental conditions

• Industrial equipment and inventory storage

• High-value asset protection from extreme temperatures

• On-site storage for operations in varied climates

Climate-controlled containers provide a durable, secure alternative to traditional storage pods or prefabricated sheds for operations requiring environmental stability and security .

Package Includes

• 20ft climate-controlled storage container

• Insulated walls and ceiling

• PTAC climate unit with heating and cooling

• Marine-grade plywood or bamboo flooring

• LED lighting and electrical outlet

• Operable cargo doors with locking hardware

• Corner castings (8 total)

• Forklift pockets (4 positions)

• CSC certification plate
