10ft x 8ft Flat Floor Bunded Store

The 10ft x 8ft flat floor bunded store is a modified shipping container designed for the secure storage and containment of hazardous materials, chemicals, and liquids. Its integral steel bunded floor provides a liquid-tight containment basin that captures spills and leaks, helping to prevent environmental contamination and supporting regulatory compliance .

Key Features

• Integral spill containment with a steel bunded floor, providing a liquid-tight basin to capture spills and leaks from stored containers

• Flat floor configuration providing a level surface for ease of loading, unloading, and moving drums, IBCs, and other containers

• Cor-ten steel construction for structural integrity, durability, and resistance to corrosion

• Secure access with exterior double cargo doors featuring two locking bars and a factory-fitted lockbox

• Enhanced ventilation with 12 vents to promote airflow and reduce condensation and vapor accumulation

• Easy handling with forklift pockets and ISO corner castings for repositioning and transport

• One-trip construction converted from a near-new shipping container

Detailed Description

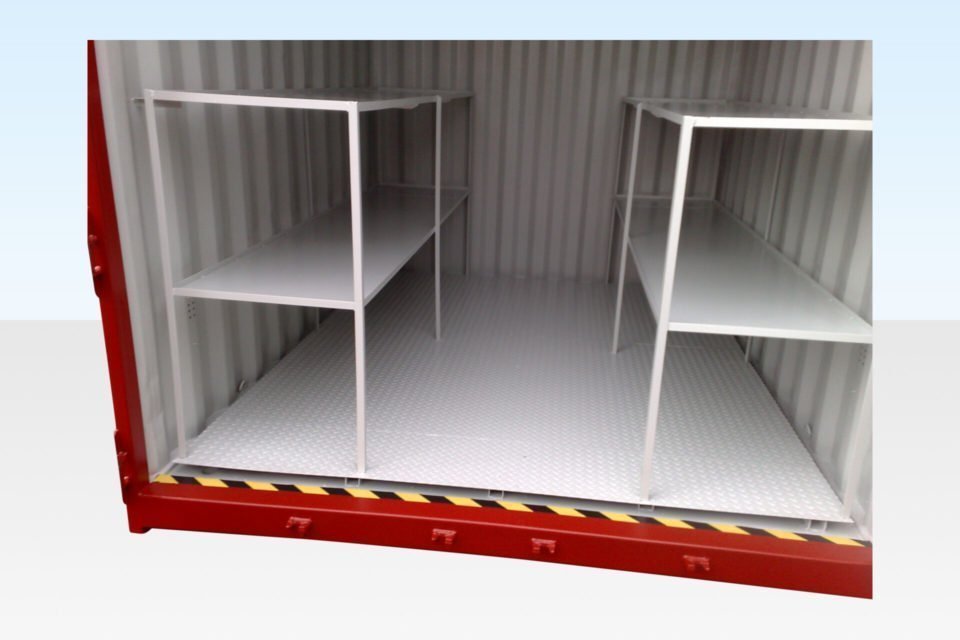

The 10ft flat floor bunded store is constructed from a standard shipping container that has been specifically modified for chemical storage applications. The original marine plywood floor, which is not suitable for chemical storage, is covered or replaced with a steel bunded floor system . This unit features a flat floor configuration using a steel checkerplate tray, which provides a level surface that allows for easier movement of wheeled containers and reduces trip hazards compared to raised or mesh floors .

The bunded floor functions as a secondary containment system, designed to capture and retain spills or leaks from drums, IBCs, and other stored containers. The typical bund height is approximately 6 inches (150mm), providing a spill containment capacity suitable for this size of unit . Cor-ten steel construction offers weather resistance and structural durability for extended outdoor placement . Multiple built-in vents ensure continuous airflow, reducing the risk of vapor accumulation in the storage area .

Technical Specifications

• External Dimensions (L x W x H): 2.99m x 2.44m x 2.59m (9 ft 10 in x 8 ft 0 in x 8 ft 6 in)

• Internal Dimensions (L x W x H): 2.84m x 2.35m x 2.39m (9 ft 4 in x 7 ft 8 in x 7 ft 10 in)

• Door Opening (W x H): 2.34m x 2.28m (7 ft 8 in x 7 ft 6 in)

• Approx. Tare Weight: 1,470 kg (3,240 lbs)

• Floor Type: Steel Bunded Floor (checkerplate tray)

• Floor Construction: 3mm durbar steel floor welded into the container

• Bund Height: 6 inches (150mm) approx.

• Ventilation: 12 vents

• Frame Material: Cor-ten steel

• Door Type: Double cargo doors, two locking bars

Intended Use

This store is specifically designed for the safe and compliant storage of chemicals, oils, pesticides, and other hazardous liquids. It is suited for the following applications:

• Agricultural chemical and pesticide storage on farms

• Industrial and manufacturing facility chemical containment

• Construction site hazardous material storage

• Educational institutions, hospitals, and councils

• Containerized storage for logistics and warehousing operations

Package Includes

• 10ft x 8ft flat floor bunded store

• Steel bunded floor (checkerplate tray)

• Double cargo doors with two locking bars

• Factory-fitted lockbox

• 12 ventilation vents

• ISO corner castings (8 total)

• Forklift pockets (4 positions)

• CSC certification plate
