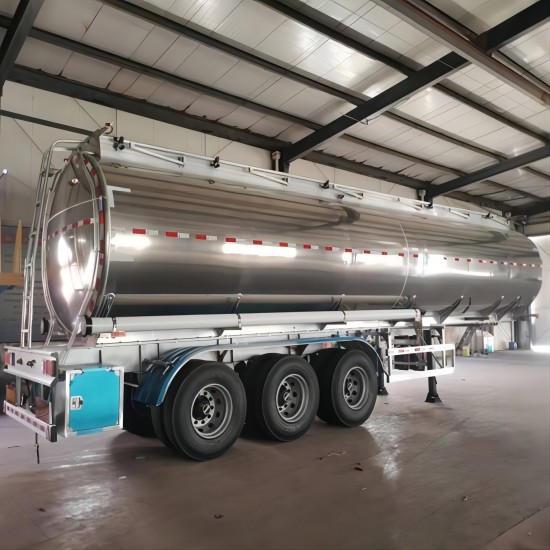

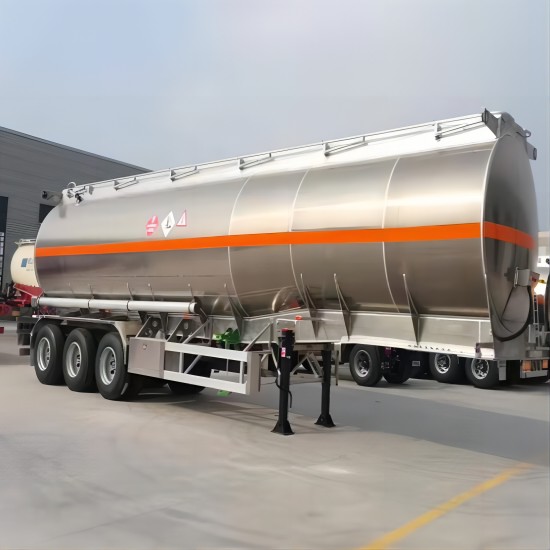

45,000 Liter Aluminum Alloy Tanker Trailer | Lightweight, Durable, and Efficient
Elevate your logistics operations with our 45,000-liter aluminum alloy tanker trailer, engineered for maximum payload efficiency and corrosion resistance. Crafted from high-grade aluminum alloy, this trailer reduces tare weight while maintaining structural integrity, allowing for increased legal payload capacity and reduced fuel consumption. The tri-axle chassis ensures superior road stability, compliance with weight regulations, and safe handling of sensitive liquids. Ideal for fuel, chemicals, potable water, and food-grade products, this tanker combines durability with operational economy.

Key Features:

• Lightweight Aluminum Alloy: Reduces tare weight for increased payload capacity and fuel efficiency.

• High Capacity: 45,000-liter (11,888-gallon) capacity for large-volume transport.

• Corrosion Resistance: Aluminum construction prevents rust, extending lifespan and maintaining liquid purity.

• Tri-Axle Stability: Enhanced weight distribution and road compliance for safe hauling.

• Safety Systems: Includes pressure relief valves, anti-surge baffles, and modern braking.

• Customizable: Options include insulation, heating coils, compartmentalization, and discharge systems.

Ideal Applications:

• Fuel and petroleum transport

• Chemical and industrial liquids

• Food-grade products (e.g., milk, edible oils)

• Potable water and wastewater hauling

• Agricultural and pharmaceutical liquids

Advantage:

1. The tank body is automatically welded by an advanced large-scale special welding machine.

2. The manhole is an explosion-proof cover, and the water outlet at the bottom of the tank is equipped with an emergency shut-off valve.

3. Strict safety performance test to ensure that the tank body is highly sealed to avoid leakage.

4. The anti-wave plate reduces the effective impact of the liquid on the tank body.

5. Spray advanced polyurethane paint, beautiful appearance, easy to clean.

6. Use world-renowned components to save cost and prolong service life.

Specification:

Dimension: 12000*2500*3800mm

Load Volume: 45,000 liters (11,888 gallons)

Application: transport fuel, petrol, oil, etc

Tank Body Material: aluminum alloy

Compartments: 5 compartments

Manhole Cover: 5 Pcs

Discharging Valve: 5 pcs API valve, 3 or 4 inch

Discharging Pipe: 2 pcs, 6m/each

Main Beam: Q345 carbon steel material

Axle: 3 axles, 13 tons FUWA/BPW brand

Landing Gear: JOST brand 28 tons lifting capacity

King Pin: 3.5 inch

Suspension: heavy duty mechanical suspension

Leaf Spring: 90mm(w)*12mm(thickness)*10 Layers

Tire: 12 units, 12R22.5

Brake System: WABCO brand

Electrical System: 24V, LED lights

Why Choose This Trailer?
Its aluminum alloy construction offers unmatched corrosion resistance and payload efficiency, reducing operational costs while ensuring product purity. The tri-axle design guarantees stability and safety, making it a top choice for demanding liquid transport needs. Contact Us
