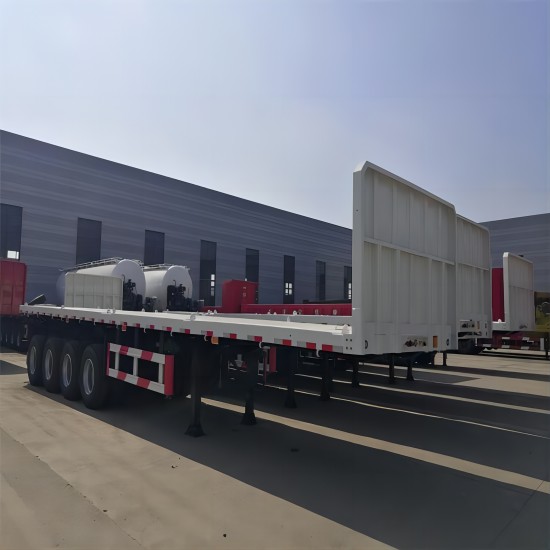

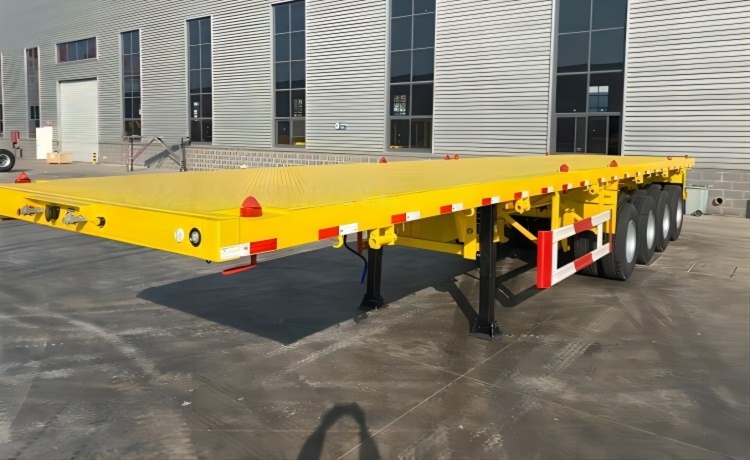

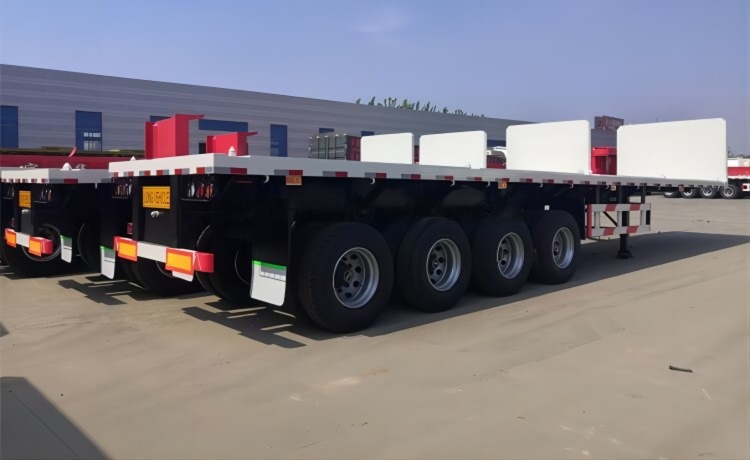

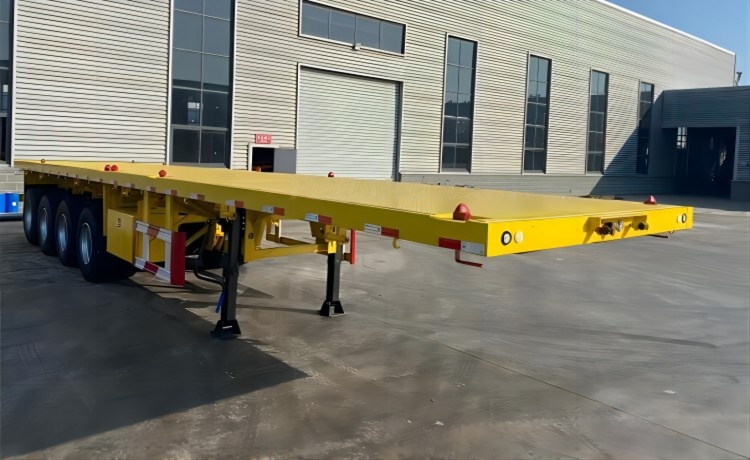

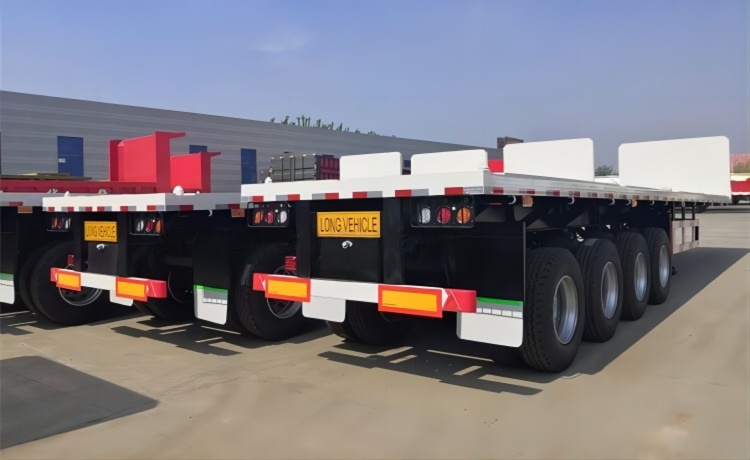

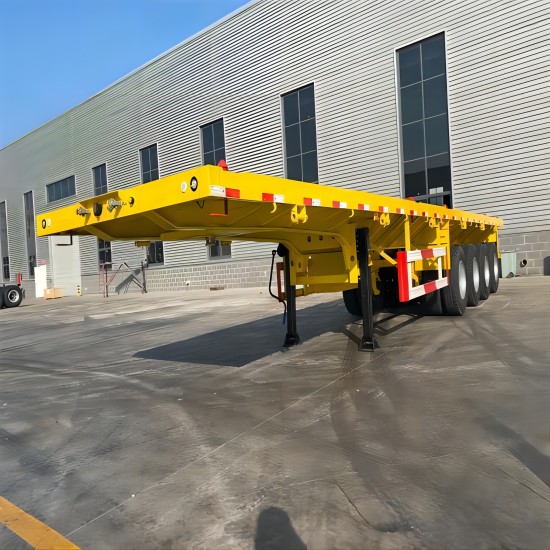

4-Axle Semi Flatbed Trailer | Heavy-Duty Transport for Oversized Loads
Tackle the most demanding hauling challenges with our 4-axle semi flatbed trailer, engineered for strength, stability, and versatility. Built with a reinforced chassis and four axles for superior weight distribution, this trailer is designed to handle oversized, bulky, and heavy equipment with ease. Whether you’re transporting construction machinery, industrial components, or large materials, this flatbed delivers reliability and compliance with road regulations. Its open-deck design allows for easy loading and unloading from all sides, making it a go-to solution for heavy-duty logistics.

Key Features:

• 4-Axle Design: Ensures optimal weight distribution, stability, and compliance with road regulations.

• Reinforced Steel Construction: Built to withstand heavy loads and harsh conditions.

• Versatile Deck: Open design accommodates a wide range of cargo, from machinery to building materials.

• Easy Loading: Accessible from all sides for efficient loading and unloading.

• Safety Features: Includes LED lighting, anti-slip decking, and secure tie-down points.

• Customization: Options include removable sides, winch systems, and specialized deck coatings.

Ideal Applications:

• Construction equipment transport

• Industrial and manufacturing logistics

• Wind turbine and energy component hauling

• Oversized machinery and vehicle transport

• Building materials and structural steel transport

Specification:

Dimension(L*W*H): 48’ L x 8.5’ W (14.6m x 2.6m)

Application: transport 40ft, 45ft container

Loading Capacity: 80,000 lbs (36,287 kg)

Main Beam: height 60ft (1.5m), upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm steel channel

Platform: 3mm-thick checkered plate

Axles: 4 axles*13T/16T*FUWA/BPW brand

Tire: 16 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Twist Locks: 12 pcs

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Accessories: one standard tool box, spare tire carrier
