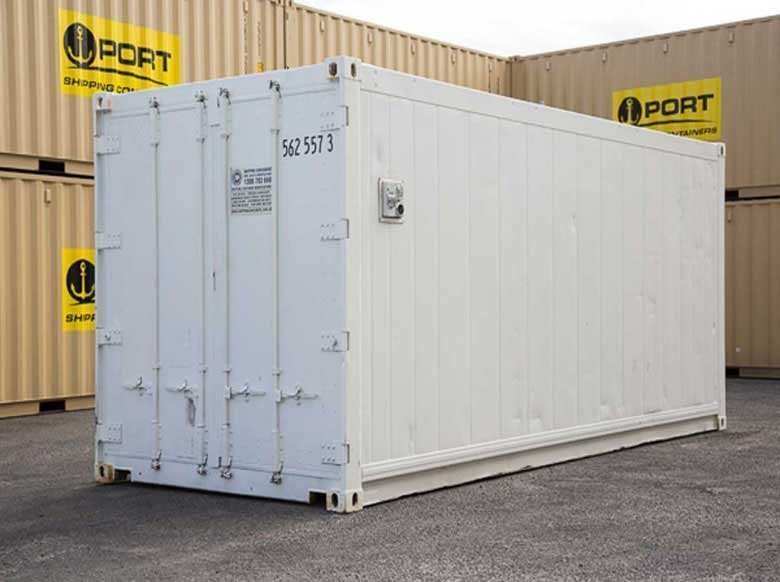

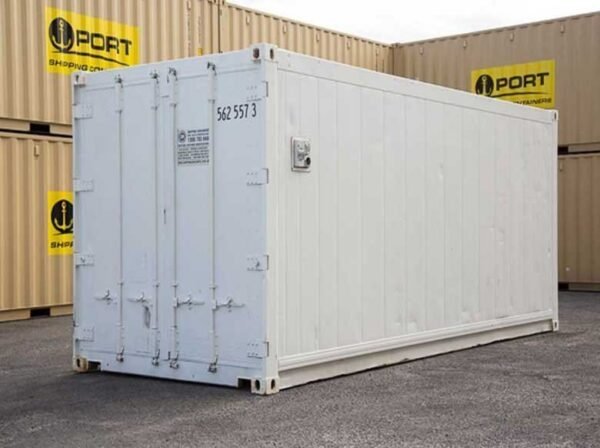

20ft Refrigerated Container
20ft Refrigerated Container - Image 2
20ft Refrigerated Container - Image 3
20ft Refrigerated Container - Image 4
20ft Refrigerated Container - Image 5
20ft Refrigerated Container - Image 6
20ft Refrigerated Container - Image 7
20ft Refrigerated Container - Image 8

20ft Refrigerated Container

$4,500.00

Refrigerated shipping containers are the ideal way to transport and store goods that require reliable temperature-controlled facilities. When shipping or storing meat, cheese, dairy or seafood, a refrigerated container, also known as a ‘reefer’, is an absolute must-have. Fruits, flowers and many vegetables also need a steady temperature to make sure they arrive at their destination in their best condition, though they may only require an insulated container – it really does depend on the product, how far you are shipping, and how long the journey takes.

Categories: , , ,

Description

20ft Refrigerated Container

This 20ft refrigerated shipping container, commonly known as a reefer, is an insulated unit equipped with an integral refrigeration system. It is designed for the transport and storage of temperature-sensitive cargo, providing a controlled environment for a variety of goods, including food products and pharmaceuticals.

Key Features

  • Integrated refrigeration unit with digital temperature control for precise climate management

  • Wide temperature range from -35°C to +30°C to accommodate chilled or frozen goods

  • Stainless steel interior lining for improved hygiene, durability, and corrosion resistance

  • T-bar flooring system designed for optimal air circulation beneath and around palletized cargo

  • Comprehensive insulation with polyurethane foam in walls, ceiling, and floor to maintain thermal efficiency

  • Air circulation system ensuring uniform temperature distribution from floor to ceiling with top airflow

  • CSC certification for regulatory compliance and intermodal transport compatibility

  • Forklift pockets and ISO corner castings for ease of handling and positioning

Detailed Description

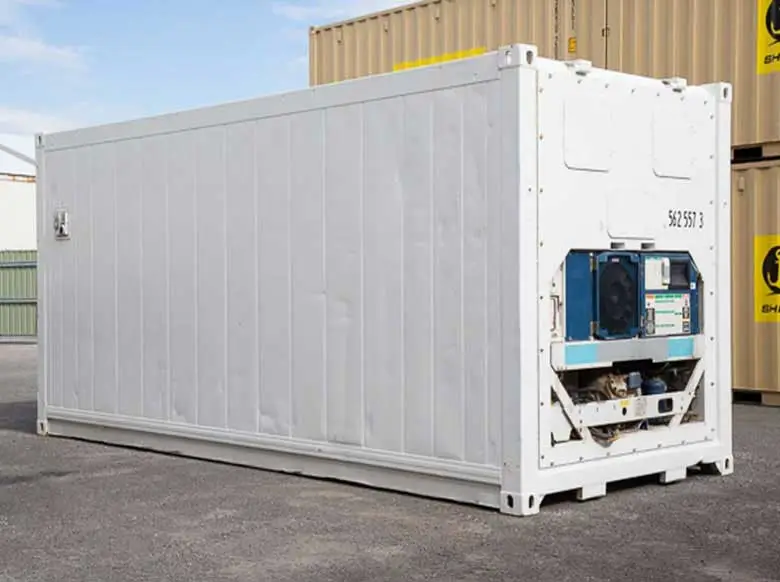

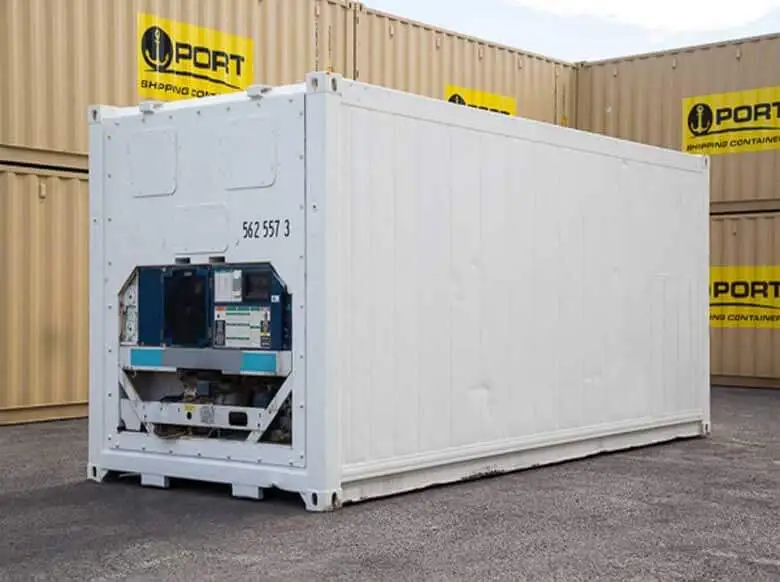

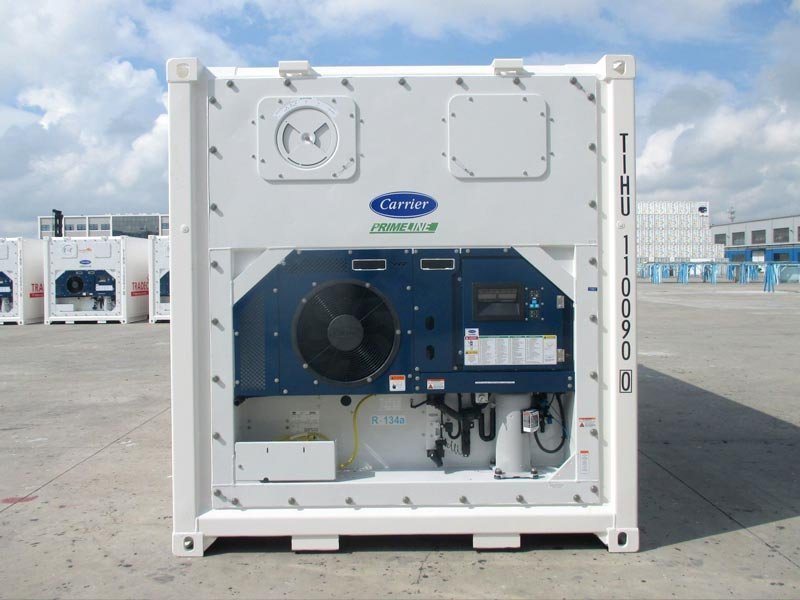

The 20ft refrigerated container is constructed with high-performance insulation to minimize heat transfer and maintain stable internal temperatures . The integral refrigeration unit, typically from Carrier, Thermo King, or Daikin, operates on a three-phase power supply and is managed through a digital interface for accurate temperature adjustments .

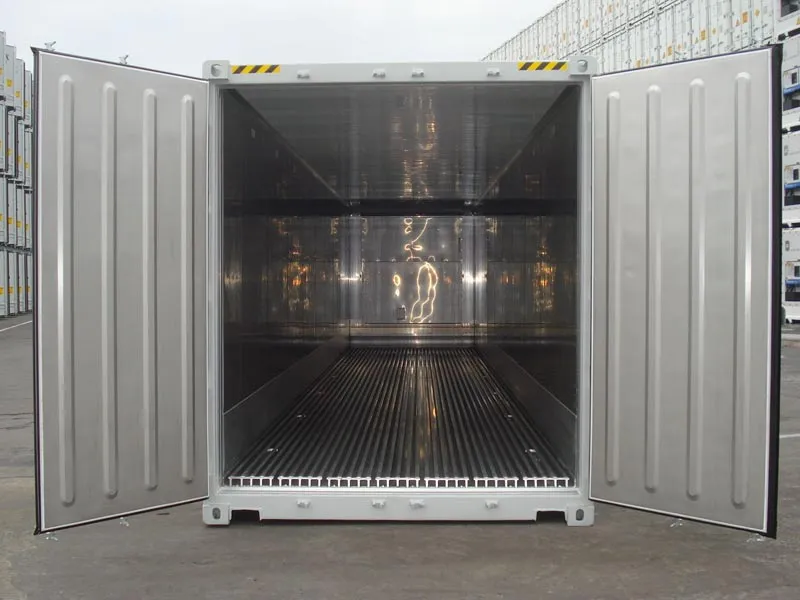

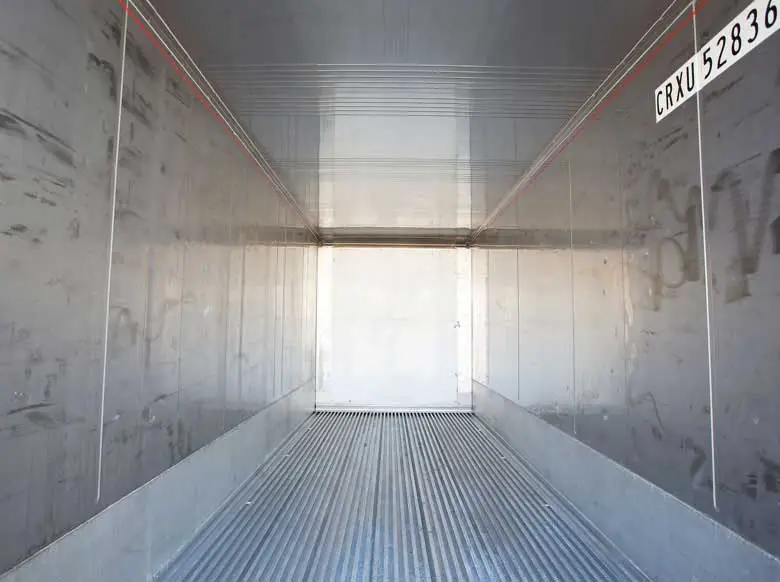

The T-bar flooring system is a critical design feature that allows cold air to circulate freely beneath palletized goods . Combined with corrugated side walls that facilitate airflow, this ensures the entire cargo area maintains uniform temperature. The interior also features a stainless steel lining that is easy to clean and highly resistant to corrosion, essential for food-grade and pharmaceutical applications .

These containers are commonly used for both active shipping and as a cost-effective alternative to building permanent cold storage facilities for on-site warehousing .

Technical Specifications

Specification Metric Imperial
Internal Length 5.44 – 5.72 m 17 ft 10 in – 18 ft 9 in
Internal Width 2.28 – 2.29 m 7 ft 6 in
Internal Height 2.01 – 2.27 m 6 ft 7 in – 7 ft 5 in
Door Opening Width 2.23 – 2.29 m 7 ft 3 in – 7 ft 6 in
Door Opening Height 2.10 – 2.27 m 6 ft 10 in – 7 ft 5 in
Cubic Capacity 26 – 28.3 m³ 918 – 999 ft³
Temperature Range -35°C to +30°C
Power Supply 3-phase, 380-460V
Approx. Tare Weight 2,550 – 3,120 kg 5,620 – 6,880 lbs
Max Gross Weight 30,480 kg 67,200 lbs
Max Payload 21,450 – 27,360 kg 47,290 – 60,320 lbs

Intended Use

This container is suited for the following applications:

  • Chilled or frozen storage of perishable food products, including produce, meat, and dairy

  • Cold chain logistics for pharmaceuticals, vaccines, and biologics

  • On-site cold storage for events, food service, and industrial operations

  • Transport of flowers, horticultural products, and other sensitive agricultural goods

  • Temporary or permanent cold storage in locations without built-in refrigeration infrastructure

Package Includes

  • 20ft refrigerated shipping container

  • Integral refrigeration unit with digital control panel

  • T-bar flooring system

  • Stainless steel interior lining

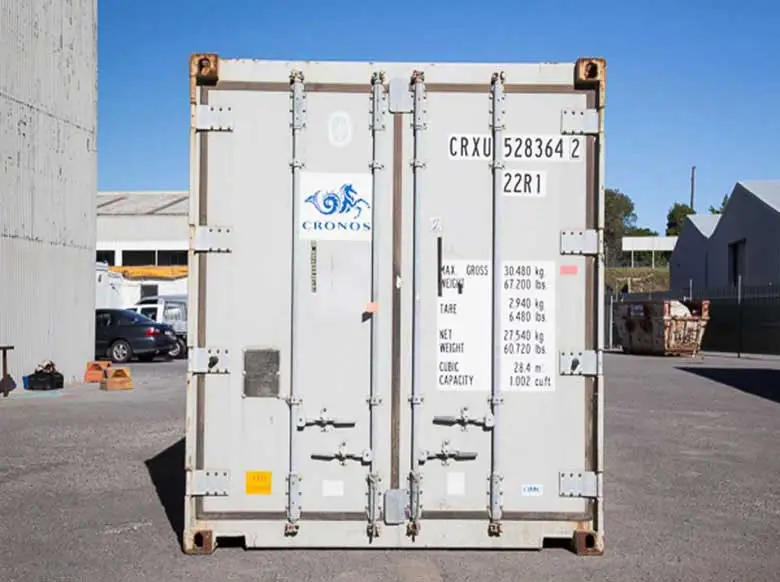

  • Double cargo doors with locking bars

  • CSC certification plate
